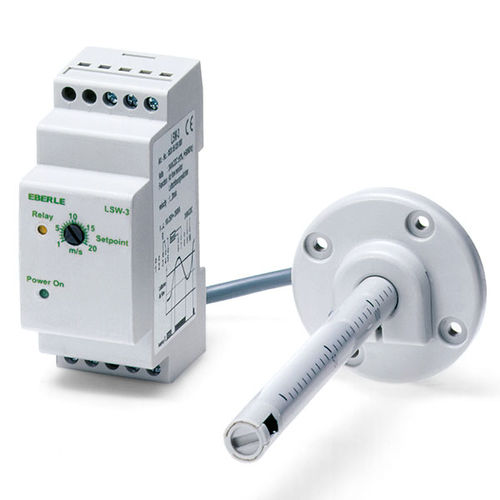

Fixed monitor LSW-3/1

Air flow monitor AC 230 V, 1 changeover contact, 10A, range 0.1...5 m/sec. Contact - Change-over (voltage-free) Voltage - AC 230 V 50/60 Hz Switching current - AC 10A Measurements - 35 mm The air flow monitor is used for monitoring ventilation, heating and air conditioning systems, as well as for monitoring in switchgear. The sensor, which is connected to the measuring relay via a cable, detects the air flow and compares it with the setpoint value. The setpoint is adjusted on the front with a screwdriver. Display for relay output and operating voltage. Probe is supplied with 2.5 m cable grey, extendable up to 10 m 1 change-over contact, adjustable flow rate: 0.1...5 m/sec., extension up to max. 10 m possible, close parallel routing with mains cables must be avoided, use shielded cable if necessary, LED display for relay output and operating voltage, degree of protection: housing IP 40, terminals IP 20, mounting on mounting rail
