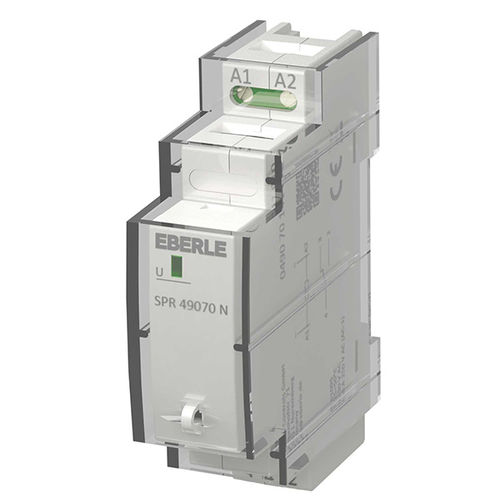

230VAC electromechanical relay SPR 490 70 N

NO/NCcouplingDIN rail

Installation relay for DIN rail mounting DIN-EN 50 022, 1 changeover contact, sealable Contact - 1 changeover contact Temperature range - -25 … 50°C Measurements - 90 x 26,4 x 62,5 mm 1 changeover contact, coupling relay for mounting on DIN-EN 50 022 mounting rail. Suitable for use in the EVU field and in the additional room for additional applications (zRfZ) for controlling e.g. storage heaters, charging devices, heat pumps. Coupling relays for controlling controllable consumption devices in accordance with § 14a EnWG. All relays have a switching position indicator. The control terminals can be sealed* using a transparent plastic cap (included in the scope of delivery). Protection class IP 20, weight 82 g, *if the seal is positioned correctly, terminal connections A1 and A2 (relay control) as well as 1, 2 and 5 cannot be opened with standard screwdrivers
