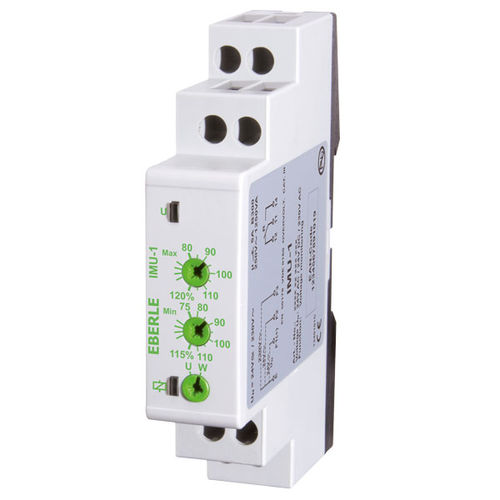

230VAC electromechanical relay IMU-1

NO/NCsingle-phaseDIN rail

1 changeover contact 5A, Umax 10...120 %, Umin 75...115 % Contact - Change-over / make contact Measurements - 87 x 17,5 x 60 mm Voltage measuring relay for monitoring DC and AC voltage for single-phase operation. Measuring voltage is equal to supply voltage. The voltage type is detected automatically. The unit has 2 operating modes. Minimum: A minimum voltage is monitored, the relay switches when the voltage falls below the setpoint. Window: A voltage range is monitored, the relay switches as soon as the voltage exceeds or falls below the range. Functions adjustable from the front. Separate setting of the switching thresholds. Display of operating status via 3 LEDs: UN, >max. and 4 measuring ranges: UC 0.1...10 V, UC 0.6...60 V, UC 30...300 V, UC 60...600 V, 4 measuring ranges, monitoring of DC and AC voltage, functions adjustable from the front: Overvoltage, undervoltage and voltage window, separate setting of switching thresholds, adjustable error reaction and start-up bridging time.
