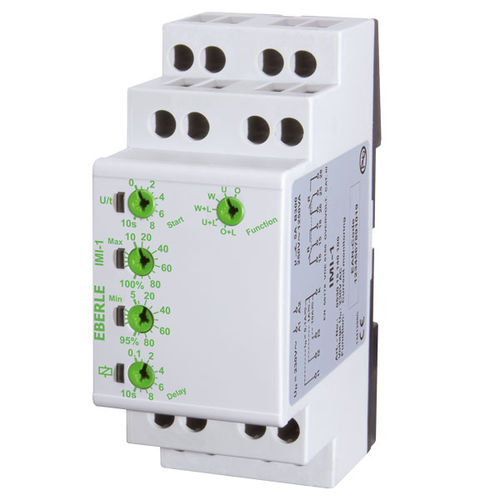

230VAC electromechanical relay IMI-1

NO/NCDIN rail

1 changeover contact, 3 measuring ranges from UC 5mA...10A Contact - Change-over / make contact Measurements - 87 x 35 x 60 mm Current measuring relay for monitoring direct and alternating current. 3 measuring ranges. The type of current is detected automatically. The unit has 3 operating modes. Minimum: A minimum current is monitored, the relay switches when the current falls below the setpoint. Maximum: A maximum current is monitored, the relay switches when the setpoint is exceeded. Window: A current range is monitored, the relay switches as soon as the current exceeds or falls below the range. Each operating mode can be selected with or without error memory. Functions adjustable from the front. Separate setting of the switching thresholds. Adjustable error reaction and start-up bridging time. Display of operating status via 3 LEDs: UH , >max. and 1 changeover/1 NO contact, 3 measuring ranges: UC 10...100 mA, UC 0.1...1A, UC 1...10A, 3 measuring ranges, monitoring of direct and alternating current, functions adjustable from the front: Overcurrent, undercurrent and current window, separate setting of switching thresholds, adjustable fault response and start-up bridging time, indication of operating status via 3 LEDs: UN, > max. and < min, fault storage and reset input, mounting on mounting rail.
