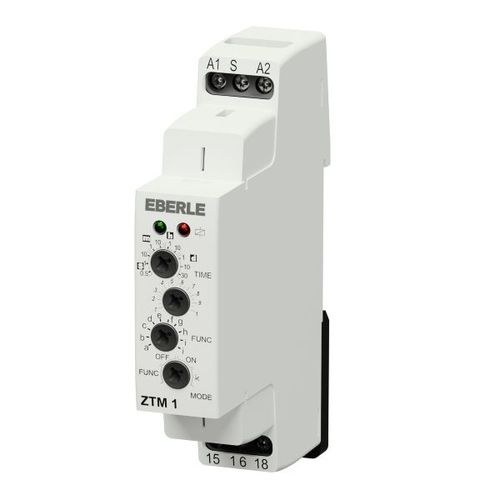

DC electromechanical relay ZTM 1

ACNO/NCDIN rail

Time relay AC/DC 12…240 V (AC 50/60 Hz), 1 changeover contact, 11 functions. Contact - 1 change-over Voltage - 12…240 V AC/DC (AC 50/60 Hz) Measurements - 90 x 17,6 x 64 mm Multifunctional time relay from the ZT-Line series. 11 functions, 10 time ranges. The function and time range selection is set on the front panel using rotary switches. The displays for time elapsed, switching status, and operating voltage enable constant monitoring of the functional status. 1 changeover contact; 11 functions: delayed pickup/with delay fade-out, delayed release/with delay fade-out, flasher (pause/pulse start); pulse/release delayed after opening the control contact / after switching the control contact / recoverable, pulse generator, pulse relay with delay, adjustable time range: 50 ms ...30 days"
