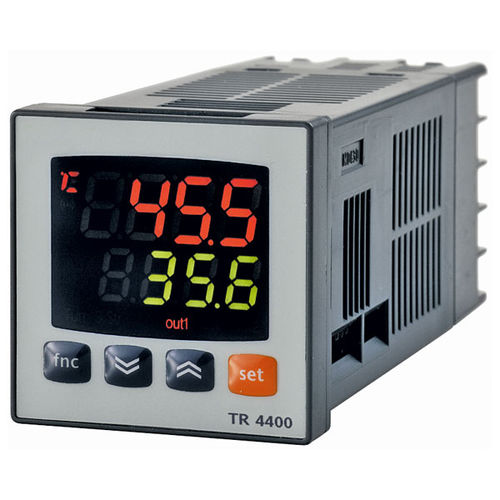

DIN rail temperature controller TR 4400-004

Temperature controller front panel mounting digital, -200C/F..1600C/F, AC100-240V, for analog I and U and Pt 100 Contact - Change-over / make contact (voltage-free) Voltage - AC 100 … 240 V Measurements - 48 x 48 mm The temperature controllers of the TR 4400 series, which operate with a microprocessor, are characterised by their high control accuracy. Digital 4-digit display of the actual value and simultaneous display of the setpoint. Range, input type and control function selectable via keyboard. Control function: heating/cooling, three-step control and continuous control. PID self-optimisation (auto-tuning), soft start -time temperature profile. When ordering, always specify 2 positions, control unit and sensor. -200°C/°F.... 1600°C/°F, 1 change-over contact + 1 NO contact, potential-free, inputs: analogue I and U and Pt 100, digital 4-digit display of actual value and simultaneous display of setpoint, range, input type and control function selectable via keypad, control function: heating/cooling, three-step control and continuous control, PID self-optimisation (auto-tuning), soft-start -time-temperature profile, degree of protection: housing front IP 64, always specify 2 positions when ordering, control unit and probe
