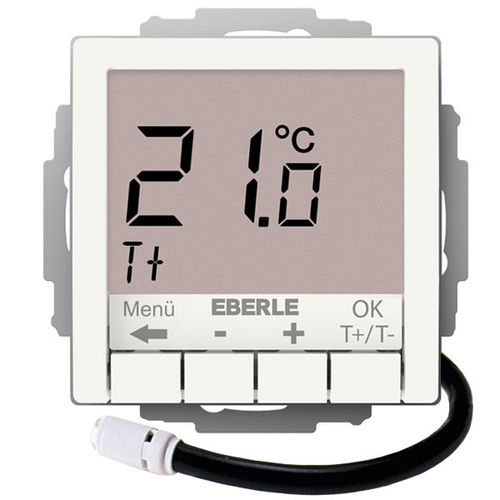

Electronic thermostat UTE 4100-F-RAL9010-G-55

manualroomfor heating

Flush-mounted thermostat for controlling electrical temperature control systems, RAL9010 glossy 55x55, AC 230V, 1 NO contact 16A, white backlighting Contact - Heating Voltage - 230V AC 50/60 Hz Switching current - 10 mA … 16 (4) A * 230 V~ Temperature range - 10°C … 40°C Measurements - 55 x 55 mm Temperature­drop - Yes Surface - glossy Control procedure - PWM / ON/OFF (adjustable) Display - Yes Programmable - No Remote sensor - Included in delivery LED - Heating / temperature setback Flush-mounted thermostat suitable for all standard switch ranges. Polar white glossy, 55x55 cover without frame. Suitable for controlling electric floor and wall/ceiling heating. Very large display, the backlighting in white is off, briefly on at the touch of a button. Single-line text display for self-explanatory operation. Simple switching between 2 temperatures (e.g. comfort and set-back temperature). ECO input for activating a freely adjustable temperature, e.g. for night setback. Short-term timer (party) for changing the temperature by the hour. Energy consumption display (switch-on time x costs). Frost protection. Temperature display can be adapted to local conditions. Unauthorized protection. PWM or 2-point control method. With 4m remote sensor (extendable up to 100m) included. Installation in 55 mm flush-mounted box
