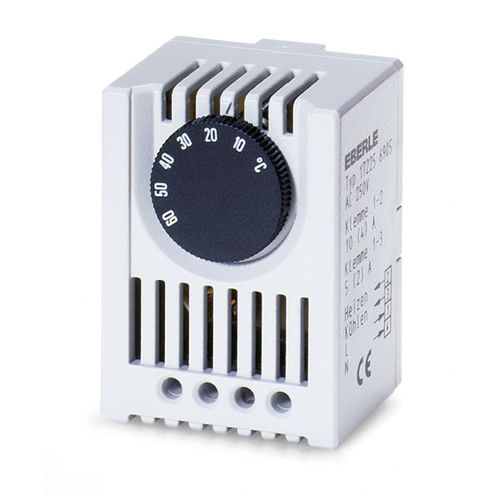

DIN rail temperature controller SSR-E 6905

Temperature controller for control cabinet 10-60°C, AC 230V, 1 changeover contact, 10/5A for H or K Contact - Heating and cooling (change over) Voltage - AC 230 V 50 Hz Switching current - AC 10 mA…10 (4) A (✹); AC 10 mA…5 (2) A (❅) Temperature range - 10 … 60°C Measurements - 50 x 67 x 35 mm The control cabinet temperature controller, for DIN rail mounting, is suitable for controlling the ambient temperature in switchgear, control systems, distribution systems, etc.. The controller has a range limiter integrated in the setting knob. The desired range or a fixed temperature can be set. Connection from the front without removing the housing cover. 1 change-over contact, 10/5A for heating and cooling, connection possible without removing the housing cover, degree of protection IP 30, control cabinet temperature controller, with range limitation in the setting knob, DIN rail mounting
