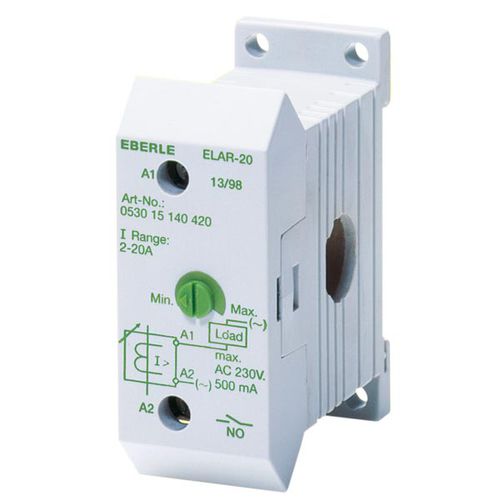

AC solid state relay ELAR 20

1 NOsingle-phaseDIN rail

Load shedding relay AC 24...230V 50/60Hz, current measuring range adjustable AC 2...20A Contact - Make contact (Triac 10 … 500 mA) Voltage - AC 24 … 230 V 50/60 Hz Measurements - 56 x 22,5 x 49 mm Load shedding relay with integrated current transformer, with cable feed-through at the front to save space and reduce wiring. Application examples: Device interlocks, motor current monitoring, suction devices, forced ventilation and exhaust systems. Detection of faults by measuring undercurrent or overcurrent. Ideally suited for electric instantaneous water heaters. For mounting on mounting rail. Current measuring range adjustable from AC 2...20 A, continuous overcurrent max. AC 40 A, 1 NO contact (Triac) AC 10..500 mA, as switching output we recommend our installation contactors
