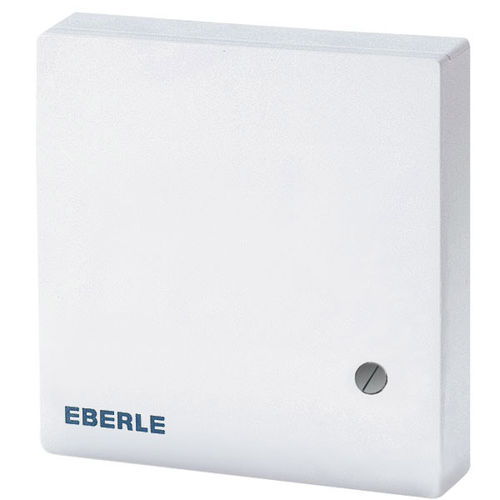

Mechanical thermostat RTR-E 6747

manualroomfor heating

Room controller, 5-30°C, AC 230V, 1 NC contact, 10A, internal scale, with TA approx.5K Contact - Heating and cooling (change over) Voltage - AC 230 V / 24 V 50/60 Hz Switching current - AC 10 mA…10 (4) A (✹); AC 10 mA…5 (2) A (❅) Temperature range - 5 … 30°C Measurements - 75 x 75 x 25,5 mm Room controller for wall mounting with closed housing cover also called authority controller. Suitable for the control of central heating, hot water underfloor heating, electric heating, night storage heating, etc. The room temperature is set under the housing cover and is thus protected against unauthorised adjustment. Output for heating or cooling. Bimetal technology with thermal feedback and high precision. Surface mounting or directly on flush-mounted box with vertical mounting holes or with snap-on mounting on DIN rail. Hysteresis ~ 0.5 K, degree of protection IP 30, with closed housing cover, with thermal feedback, surface mounting or with adapter frame ARA 1E directly on flush-mounted box, for mounting on flush-mounted box with horizontal fixing holes, adapter frame ARA 1 E must also be ordered.
