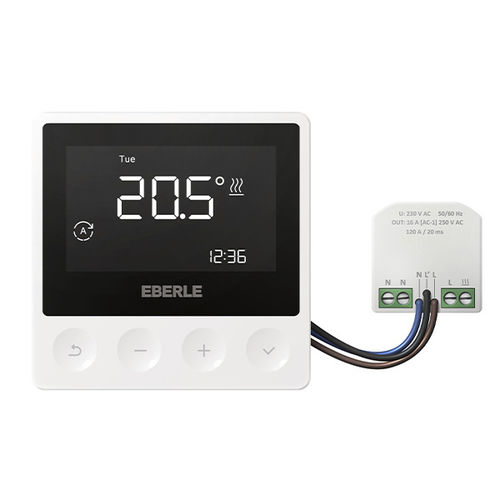

Electronic thermostat ATR 4800-16

programmableroomfor heating

Surface-mounted clock thermostat as room/floor controller, time programs, 5...30 C, 10...40 C (floor), AC 230V, triac (18 W), with Puck UPP 16, electrical applications, remote s Contact - Heating/cooling changeover Voltage - AC 230 V / 50 Hz Switching current - 16 (4) A Temperature range - 5 … 30°C 10 … 40°C Measurements - 86 x 86 x 21 mm Surface - glossy Control procedure - PWM / ON/OFF (adjustable) Display - Yes Remote sensor - optional Digital surface-mounted clock thermostat with relay extension 16 A flush-mounted puck. Active white glossy. 5...30 C (room) or 10...40 C (floor). With triac output. Suitable for electrical applications. 16 A flush-mounted puck already connected to the controller. Very large black display with backlighting. Text display for self-explanatory operation. Remote sensor input (e.g. F 193 720, NTC, 4 m, extendable up to 50 m). Universal input for heating/cooling switchover, setback or presence selectable. Auto (weekly program)/holiday/home (daily program)/timer (for eco/party mode) for changing the temperature by the hour. Consumption display (switch-on time). Frost protection. Temperature display can be adapted to local conditions. Unauthorized access protection. PWM or 2-point control method. Surface mounting or directly on flush-mounted box with horizontal/vertical fixing holes. Window open detection (can be set in the menu)
