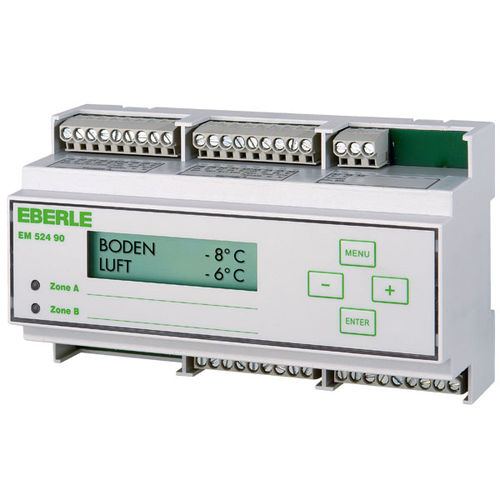

EDP no
0524 89 144 100
Operating voltage
AC 230 V +10% / –15%, 50/60 Hz
Power input
≤15 VA
Ambient temparature
–20 ... +50 °C
Storage temperature
–20 ... +70 °C
Conforms to
DIN EN 60 730 T. 1 & T. 2-9
Class of protection
II ( attainable when complying with the relevant installation instructions)
Ingress protection
EN 60 529; IP20
Safe to touch?
in compliance with VBG 4
Nominal circuit voltage
AC 250 V
Installation
snap-on mounting on standard DIN rail EN 50022-35
Housing dimensions
106 x 90 x 58 mm (45 mm front size)
Housing material
PC, UL 94-V0
Weight without sensor and packing
approx. 480 g
Input push-button
3 (Menu / Value / Enter)
Application
Ground/Roof
Temperature
0 °C ... +6 °C
Basic temperature
–15 ... –1 °C und Aus
Moisture
1 (sensitive) ... 8 (not sensitive) and OFF
Post-purge/Delayed-off time for heating
10 min. ... 120 min. and OFF
Operation
Automatic and permanent
Range
–20 … –5 °C
Liquid-crystal display
two-line, 16-digit
Temperature range
–45 °C … +78 °C
Moisture
0 … 9
Heating
ON/OFF
Fault status
Sensor defect
Parameters
Values and selection
Heating ON/OFF Switching capacity
relay, 1 normally open contact AC 250 V, 16 A cosϕ = 1; 4 A cosϕ = 0,6
Alarm ON/OFF Switching capacity
relay, 1 change over contact
for
Moisture sensor, Surface temperature sensor, Air temperature sensor
