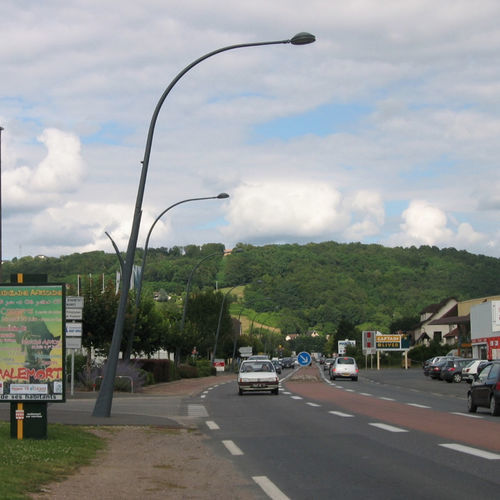

Lighting pole FLORE

cast ironsteelcast aluminum

FLORE PM Upgradeable cross section column, single part cast iron column (Shape obtained by moulding). Upgradeable single section mast-arm in cast aluminium. Configuration 1 top light or 1.2, 3 offset lights. FIXING: 4 Ø 14 mm anchors. SPACING: 200×200 mm. FLORE ARC PM Upgradeable cross section column composed of a cast iron bollard (Shape obtained by moulding) and a steel extension. FIXING: 4 Ø 14 mm anchors. SPACING: 200×200 mm. LIGHT FIXING HEIGHT: 4.30 m, 4.70 m and 5.10 m. LIGHT FIXING: with ball joint, Ø 27 pdg threading. FLORE MM ARCOS GA 13 FIXING: 4 Ø 18 mm anchors. SPACING: 300×300 mm. LIGHT FIXING HEIGHT: 6 m. LIGHT FIXING: Ø 60 mm, Lg 100 mm, lateral. OUTREACH AT THE LIGHT FIXTURE POINT: 0.7 and 1 m. FLORE MM CS/CL FIXING: 4 Ø 18 mm anchors. SPACING: 300×300 mm. LIGHT FIXING HEIGHT: 6.30 m and 7.30 m. LIGHT FIXING: threading 34 pdg, suspended. FLORE GM CS/CL FIXING: 4 Ø 24 mm anchors. SPACING: 400×400 mm. LIGHT FIXING HEIGHT: 8.20 m. LIGHT FIXING: threading 34 pdg, suspended. FLORE GM I Round-conical cross section, single block, steel, pitch 5° 1 light configuration. FIXING : 4 Ø 24 mm anchors. SPACING: 400×400 mm. LIGHT FIXING HEIGHTS: 8 m and 9 m. FLORE GM D Round-conical cross section, single block, steel, pitch 5° 1 light configuration. FIXING: 4 Ø 24 mm anchors. SPACING: 400×400 mm. FLORE ARC MM FIXING: 4 Ø 18 mm anchors. SPACING: 300×300 mm.
