Urban lamp post IXEA
contemporarygalvanised steelcast iron

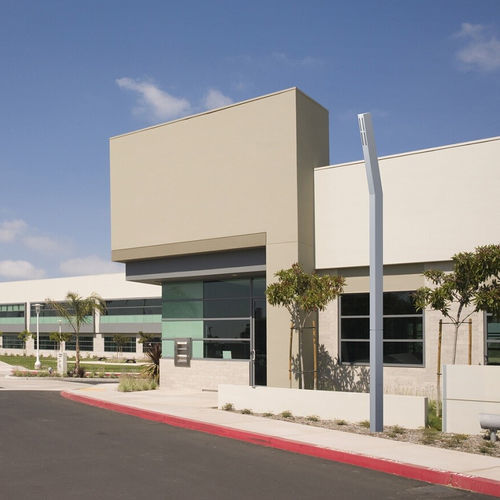

Urban lamp post - IXEA - ECLATEC International - contemporary / galvanised steel / cast iron
Urban lamp post - IXEA - ECLATEC International - contemporary / galvanised steel / cast iron
Urban lamp post - IXEA - ECLATEC International - contemporary / galvanised steel / cast iron - image - 2
Urban lamp post - IXEA - ECLATEC International - contemporary / galvanised steel / cast iron - image - 3
Urban lamp post - IXEA - ECLATEC International - contemporary / galvanised steel / cast iron - image - 4
Urban lamp post - IXEA - ECLATEC International - contemporary / galvanised steel / cast iron - image - 5
Add to favorites
Compare this product

Characteristics

Type
urban
Style
contemporary
Material
galvanised steel, cast iron
Light source
LED
Number of lights
multiple
Shape
sculptural
Support type
straight
Protection class
IP66
Color
gray, customizable color
Other characteristics
IK10
Height

4 m, 5 m, 6 m, 7 m
(13'01" , 16'04" , 19'08" , 22'11" )

Color temperature

2,200 K, 2,400 K, 2,700 K, 3,000 K, 4,000 K

Luminous flux

5,834 lm

Power

33 W

Description

HOUSING: Painted, metallised cast iron lighting column and painted, galvanised steel extension FINISH: Polyester powder coating, any colour available SOURCES: IXEA module PIXEL RANGE mentioned: lighting column Lighting column in painted metallic cast iron with painted galvanised steel extension. OPTICAL: IXEA single lens FLUX & POWER**: Up to 5834lm; 33W ELECTRICAL CLASS: Class I or II *Approx. 1800K **At 3000K, in accordance with performance standards IEC 62717 and IEC 62722 (+/-5%tolerance) PIXEL RANGE Lighting column Lighting column in painted metallic cast iron with painted galvanised steel extension. Column equipment depending on lighting study
