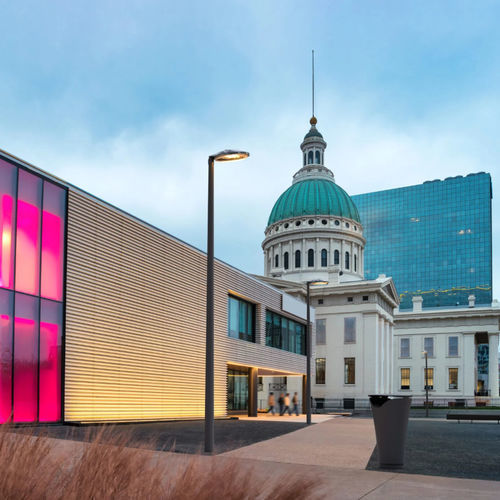

Urban lamp post FACET

contemporarypolyesterglass

Overview
Discover the professional urban luminaire Facet by Eclatec. Designed by Julien SCHNELL, the Facet range is intended for public and urban lighting and is available in configurations for varied mounting and photometric needs.

Smart

• Smart-ready® (ZD4i)
• Night-time dimming
• Detection
• Tunable White
• WIZARD remote management

Unique bezel design
Customizable bezel with selectable decorative patterns to adapt the luminaire to architectural contexts.

Mechanical interfaces

• Top capping
• Lateral with sleeve
• Lateral smooth swivel
• Lateral smooth swivel with sleeve
• Suspended

Technical information (excerpt)
Model: Facet 1 and Facet 2
Luminaire body: Injected die-cast aluminum
Diffuser: Flat screen-printed glass (white 9003)
Finish: Polyester powder coating, customizable colours
Sources: BLS strip — Facet 1: up to 36 LEDs — Facet 2: up to 72 LEDs
Color temperatures: Amber 1800K, 2200K, 2400K, 2700K, 3000K, 4000K
Light distribution: Medium or strong optional
Electrical class: Class I or II
Ingress protection: IP66 according to EN 60529. Anchored cable gland

Characteristics / technical specifications

• Series: Facet (Facet 1 and Facet 2)
• Body: Injected die-cast aluminum
• Diffuser: Flat screen-printed glass (white 9003)
• Finish: Polyester powder coating, customizable colours
• Light sources: BLS strip (36 LEDs max for Facet 1, 72 LEDs max for Facet 2)
• Available color temperatures: 1800K, 2200K, 2400K, 2700K, 3000K, 4000K
• Control and connectivity: Smart-ready® (ZD4i), Tunable White, detection, night-time dimming, WIZARD remote management
• Light distribution: Optional medium or strong
• Electrical class: I or II
• Ingress protection: IP66 (EN 60529)
