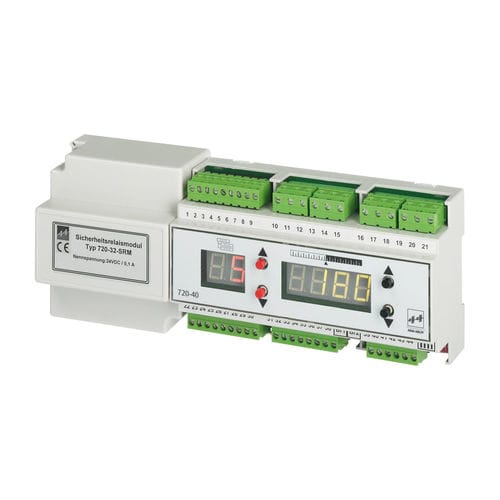

Security control unit 720-42

DIN rail

To control electric locking systems in doors along escape routes in conjunction with applications without local emergency button, or applications with local emergency button and delayed release; certified. Escape door control module • Can be connected to door terminals and operating components • Can be connected to locking components • Adjustable time period for max. continuous release, delay in continuous release, temporary release, pre-alarm, alarm interval, guidance signal, • Monitoring of time door is open during temporary release. • With 4 inputs featuring adjustable parameters for: • Control of locking and unlocking, temporary release, alarm acknowledgement via a potential-free contact in operating devices, such as card readers and keypad units. • Temporary release using an access control system, or • Emergency release via fire alarm system, or • Priority locking via burglar alarm system, or • Unlocking via timer and many other systems • With 4 relay outputs featuring adjustable parameters for: • Door locked/unlocked, or • Door open/closed, or • Collective alarm, or individual alarm, • Activation of electric strike/motorised lock/door automatics/arrestor system. • TS bus interface for parameterisation using software (FT Manager) and networks for parallel operation of visual display software, panel and OPC server • Security relay module to install applications without emergency button at door • Connections: plug-in screw terminals Technical data Output voltage - 12-24 V DC Input voltage - 12-24 V DC Total power consumption - 0.2 A at 24V (including safety relay module) Max. output current - Max. 2 A (depending on external power supply) Control - Yes
