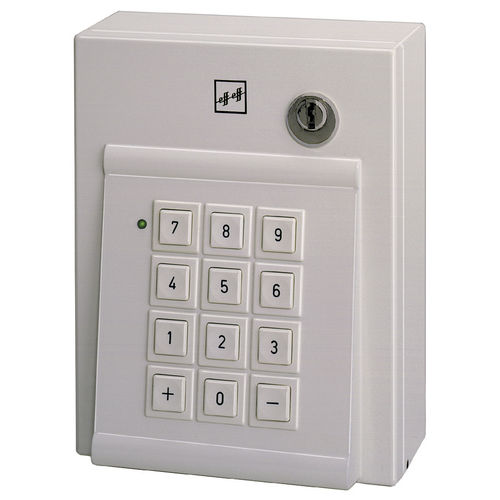

Access control code keypad 4213

Single-door solution, including 230 V power supply, 12 V, 0.25 A Overview of Advantages • 2 to 6 digit code numbers for 1 million code combinations • Up to 3 different user codes, 1 main code • Simple code management using the main code (changes made via programming key on device) • Short-term or permanent unlocking via keypad • Electric strike monitoring contact evaluation: Resetting of release time after door is opened, single entry on each release, secure locking of door • Use as organisational tool for daily operations • For all areas which must only be accessible to authorised persons • Code-operated lock • Little installation work required Scope of delivery • 1 compact door code device • 1 operating manual • 230V power supply Note • Please only use electric strikes with recovery diode and monitoring contact (e.g. 11805RR) Supply voltage - 230 V AC/ ± 10 % Input operating voltage - 230 V AC Release time - 1 - 30 seconds Outputs - 1 x potential-free relay Inputs - 1 x input for monitoring contact Contact type - Relay contact/changeover contact potential-free Operating temperature range - 0 °C to +40 °C Class of protection - IP 30 Material housing - Aluminium die casting, powder-coated Color - Grey white (RAL 9002) Dimension - 120 x 156 x 67 mm
