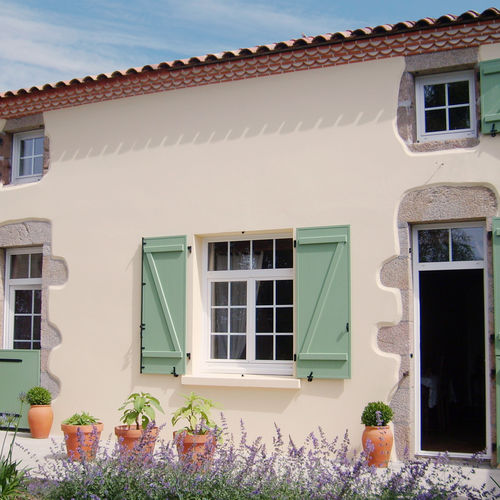

Swing shutter ISO-Z

aluminumwindowthermal break

Surface Fine structure matt (standard), silk gloss, matt Powder-coated 200 °C before assembly Colours RAL Classic, RAL Design, NCS, VSR Finishes Wood, stone, rust Pretreatment Ocean Line Plus possible Notes Electric drive is not possible in combination with special shapes Hardware packages type 3 + type 4 are possible Fittings cannot be mounted to bar Bar dimension is as standard 200 mm inset to the centre from top and bottom Bar distribution possible according to dimension specifi cation Bars inset laterally by 45 mm | Bars inset laterally by 90 mm in combination with add-on lock Not available with stop diagrams 2L/2R, 3L/3R, 4 If the outer slat section is < 65 mm due to the width of the sash, slat distribution is organised symmetrically Thermal expansion (bimetal effect) Drain holes at bottom of frame Min./Max. dimensions Width: 280 to 800 mm Height: 800 to 3000 mm Weight Approx. 7 kg/m² Frame profi le 27 × 32 mm extruded aluminium profi le Centre Polystyrene rigid foam board with double-sided aluminium sheeting plus vertical beading Attachment 70 × 26 mm extruded aluminium profi le (crossbar) 70 × 20 mm extruded aluminium profi le (Z-bar) Stop bead Supplied loose, black or white rubber (depending on sash colour) Insulation Resistance to heat passage: R = 0.26 (m²×K)/W (see certifi cate) Corner connections Glued-in aluminium bracket Options Add-on lock | Rabbet bead | Electric drive | Basic frame | Frames | Pre-installation | Notching | Special shapes (arched frame profi le) | Catch | Additional bar attachment
