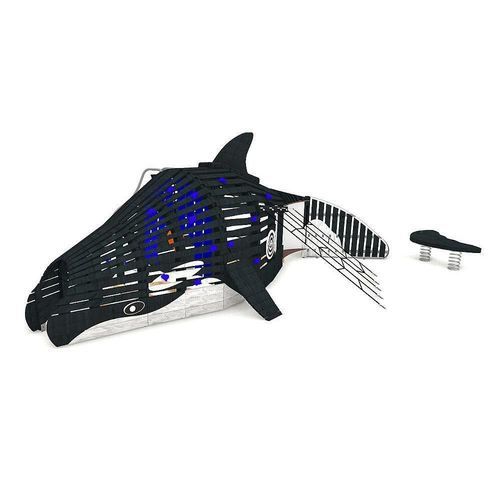

Playground structure ORCA

for public spaceplastichot-dip galvanised steel

The play whale Orca is a themed playground play system designed for children from 3 years, offering climbing, balancing, sensory and social play elements. Constructed primarily from robinia with stainless steel and HPL components for outdoor playground installations.

Scope of delivery

• 1x substructure: robinia
• 16x post shoes: hot-dip galvanised steel
• 4x angle fastenings: stainless steel
• 2x decorative side fins: robinia
• 2x decorative eyes: robinia
• 1x rocker fin: robinia
• 3x springs with ground anchors: powder-coated steel
• 1x play parapet (optical illusion): HPL, hot-dip galvanised steel
• 2x slide bars: stainless steel (V2A)
• 20x climbing holds: robinia
• 1x inclined net ascent: plastic-coated steel cable, stainless steel (V2A)
• 7x holding ropes: plastic-coated steel rope, stainless steel (V2A)
• 7x step chains: stainless steel (V2A)
• 1x strip curtain (palace motif): rubber
• 1x decorative applique with fastening ropes: plastic
• 1x two-sided distorting mirror: stainless steel (V2A)
• 1x sound chime fin: robinia, stainless steel (V2A)

Play values

• Relaxation
• Fantasy
• Fitness
• Balance
• Sensory stimulation
• Social competence
• Social interaction

Characteristics / technical specifications

• Product name: play whale Orca
• Recommended age group: from 3 years
• Main material: robinia oiled
• Minimal safety area: 9.25×10.90×4.25 m
• Installed footprint: 9.25×1.09×4.25 m
• Required impact area (net): 57.0 m²
• Free fall height: 195 cm
• Foundation level: FL 1 / ET 700
• Foundations required: 21x PFs + 4x CF
• Soil quality: at least sand
• Delivery time: approx. 11 weeks
• Product number (SKU): 54546705300
• Scope of delivery: detailed components listed above
