Wooden swing ALBATROS

stainless steellarchplayground

Product

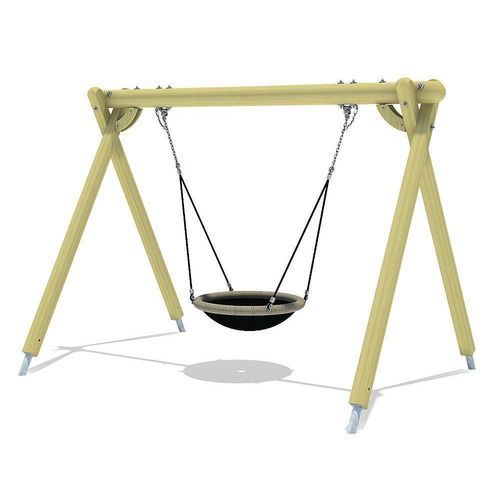

The Nest seat swing Albatros is a nest-style toddler swing designed for outdoor play areas and early-years facilities. It provides sensory, relaxing and social play experiences and features a Ø90 cm nest seat with rubber braid, a rubber-coated steel cable and galvanised chain, mounted on a softwood structure with stainless-steel fittings (V2A). Optional wood variants available: larch natural or larch glulam.

Scope of delivery

• 4x post construction: softwood
• 1x swing beam: softwood
• 2x bracing: stainless steel (V2A)
• 2x swing joint: stainless steel (V2A)
• 2x securing chain: stainless steel (V2A)
• 4x decorative corner piece: softwood
• 1x nest seat Ø90 cm with rubber braid and chain: rope ring, steel rope link mat, rubber-coated steel cable, galvanised steel chain
• Fittings: stainless steel (V2A)

Play values

• Relaxation and calming stimulus
• Vestibular input / velocity
• Sensory stimulation
• Social interaction and cooperation
• Development of social behaviour
• Inclusion-friendly design

Installation & usage notes

• Recommended age group: from 1 year
• Seat diameter: Ø90 cm
• Height reference: H 210 cm
• Assembly: 2 persons / approx. 4 h
• Delivery time indicated on site: 7 weeks

Technical specifications

• Material: pressure-impregnated softwood (optionally larch natural or larch glulam)
• Product number (SKU): 57103401300
• Model designation: Albatros
• Minimum space (L x W x H): 7.18 x 3.34 x 3.13 m
• Impact area (net): 15.5 m²
• Freefall height: 133 cm
• Largest part (L x W x H): 0.12 x 0.12 x 3.34 m
• Foundation level: ET 700
• Foundations required: 4x CF
• Suitable ground: at least sand; tender documents may also state grass
• Catalogue index: Swing Albatros
• CO2 emissions of the product: 432.2 kg
• Share of renewable raw materials: 68%
• Share of recycled material: 20%
