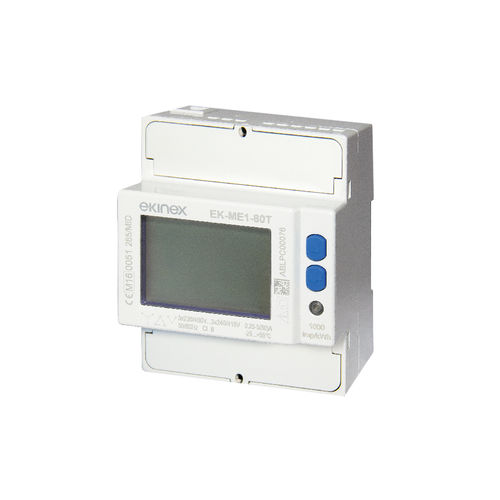

Three-phase energy meter EK-ME1-80T

digital50 Hz60 Hz

80A three phase compact energy counter for the measurement of the energy and the main electrical parameters in industrial and civilian application. Optical port for communication with other systems and the Modbus RS485 (EK-MC1-MD) and KNX (EK-MC1-TP) external communication modules. MID certification for billing and metrological LED on the front panel. Wide backlighted LCD display for energies and instantaneous powers. Mounting in distribution board on EN 60715 rail (2 modular units, each 18 mm). Direct connection up to 80 A Fully bi-directional four quadrants measurements for all energies and powers For 3 / 4 wire networks with balanced or unbalanced load Class B according to EN 50470-3 Tariff input 2 S0 outputs for energy pulse emission LCD display with 8 main digits Optical port for communication with external modules MID certification
