WOULD YOU HIDE A BEAUTIFUL VIEW TO MAKE ROOM FOR A TV? In your room, a space under the bed is enough to make the TV disappear after viewing. But not only that. Lack of fitted walls or unalterable furniture can make it difficult or aesthetically disharmonious to install a TV. Furthermore, thanks to the very high definition of 4K and 8K panels, only 170 cm is needed for optimal viewing from a 48" TV.
Description

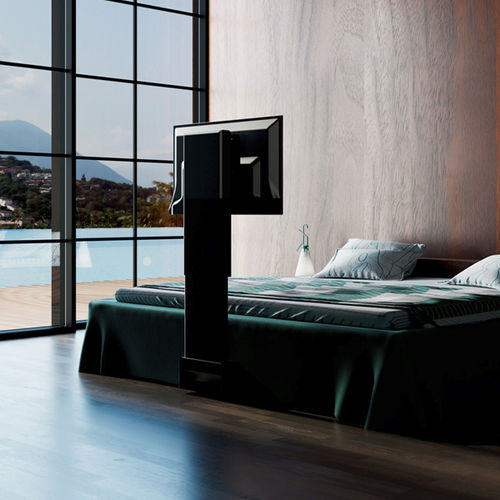

The EK-BTV-BL TV lift is designed and constructed to move a TV set under the bed. The product in the resting state is placed under the bed; by operating a wired control, the sliding motorised lift brings the TV set into the in-use state. The transition between the two states of rest/use takes place by means of three movements actuated by three electric motors:
Horizontal translation (the TV comes out from under the bed);
Rotation (the TV is brought to a vertical position);
Lifting (the TV is raised to the height pre-set during installation).
Technical Data
Dimensions in rest position (without TV) 1574 x 680 x 221 mm
Maximum dimensions (without TV) 1930 x 680 x 1740 mm
Mass (without TV) 80 kg
Cycle time 25-28 s
Power supply
Minimum screen size 32"
Maximum screen size 55"
Maximum weight 25 kg
Function control panel with integrated display (for authorised operator only)
Brackets for wall or bedside mounting
Colour: black RAL 9005 Gloss 30
Silent movement
Wired control for actuating horizontal travel, rotation, lifting movements
Infrared laser photoelectric sensors with light/dark pulse
Approval in accordance with EN 60335-1 and UL 962
Easily removable cover panels for TV cabling
Compatible with Sky Glass
For optimal viewing angle we recommend 48" TVs
