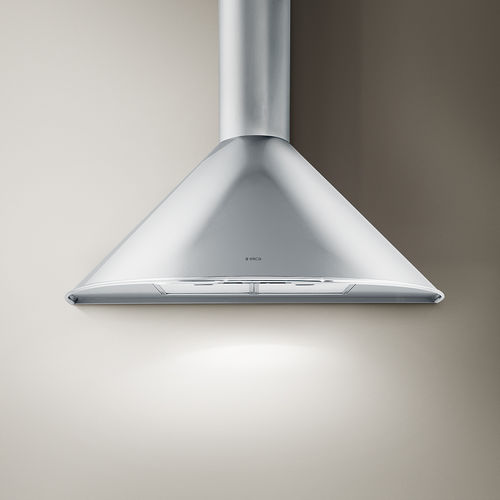

Wall-mounted range hood TONDA
ductedwith built-in lightingClass D

Wall-mounted range hood - TONDA - Elica - ducted / with built-in lighting / Class D
Wall-mounted range hood - TONDA - Elica - ducted / with built-in lighting / Class D
Wall-mounted range hood - TONDA - Elica - ducted / with built-in lighting / Class D - image - 2
Wall-mounted range hood - TONDA - Elica - ducted / with built-in lighting / Class D - image - 3
Wall-mounted range hood - TONDA - Elica - ducted / with built-in lighting / Class D - image - 4
Add to favorites
Compare this product

Characteristics

Type
wall-mounted
Ventilation
ducted
Options
with built-in lighting
Energy class
Class D
Color
gray
Noise level

Max.: 67 dB

Min.: 60 dB

Maximum airflow

Max.: 520 m³/h
(18,364 ft³/h)

Min.: 350 m³/h
(12,360 ft³/h)

Width

598 mm, 898 mm
(24 in, 35 in)

Depth

490 mm, 520 mm
(19 in, 20 in)

Height

Max.: 1,170 mm
(46 in)

Min.: 795 mm
(31 in)

Description

WEIGHT (KG) 11,45 FINISHING Stainless Steel DIMENSIONS (CM) 90 MINIMUM DISTANCE FROM WALL UNIT INDUCTION/RADIANT HOB 50cm MINIMUM DISTANCE FROM WALL UNIT GAS HOB 65cm DUCT TRANSITION 150mm LIGHTING Led 2x3 W - 2700 K - 97 LUX ABSORPTION 146W CONTROLS 3S Mechanical slider
