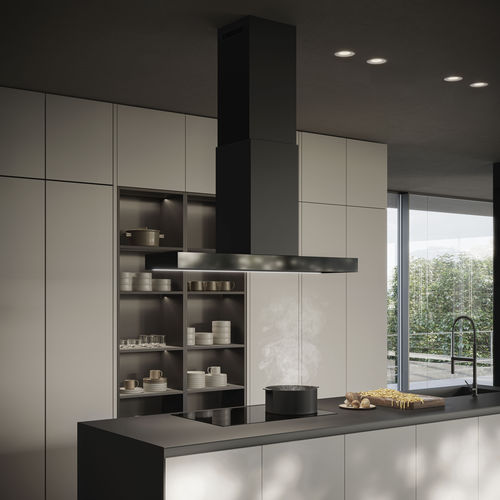

Ceiling-mounted range hood HAIKU DRY
ductedClass A+black

Ceiling-mounted range hood - HAIKU DRY - Elica - ducted / Class A+ / black
Ceiling-mounted range hood - HAIKU DRY - Elica - ducted / Class A+ / black
Ceiling-mounted range hood - HAIKU DRY - Elica - ducted / Class A+ / black - image - 2
Ceiling-mounted range hood - HAIKU DRY - Elica - ducted / Class A+ / black - image - 3
Ceiling-mounted range hood - HAIKU DRY - Elica - ducted / Class A+ / black - image - 4
Add to favorites
Compare this product

Characteristics

Type
ceiling-mounted
Ventilation
ducted
Energy class
Class A+
Color
black
Noise level

Max.: 57 dB

Min.: 41 dB

Maximum airflow

Max.: 1,000 m³/h
(35,315 ft³/h)

Min.: 300 m³/h
(10,594 ft³/h)

Width

898 mm, 1,198 mm
(35 in, 47 in)

Depth

326 mm
(13 in)

Height

Max.: 1,250 mm
(49 in)

Min.: 840 mm
(33 in)

Description

It enhances the design of your kitchen by integrating cutting-edge functions: total connectivity, silent operation, and energy savings. And with no condensation. WEIGHT (KG) 31,3 FINISHING Black Rough Effect DIMENSIONS (CM) 120x32 MINIMUM DISTANCE FROM WALL UNIT INDUCTION/RADIANT HOB 50cm MINIMUM DISTANCE FROM WALL UNIT GAS HOB 65cm DUCT TRANSITION 150mm LIGHTING Strip Led 1x7 W - 3500 K - 365 LUX ABSORPTION 177W CONTROLS 3S+B Capacitive touch control

Catalogs

No catalogs are available for this product.

See all of Elica‘s catalogs
