Wall-mounted range hood THEKUB

islandductedwith built-in lighting

Product description

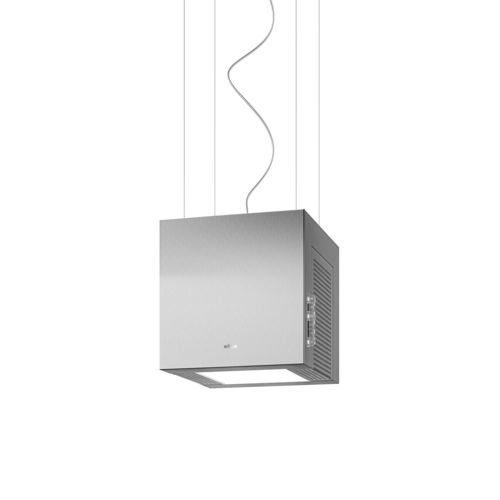

The THEKUB SUSPENDED is a compact suspended range hood designed as a furnishing element for contemporary kitchens. With a slim 32 cm width, it is ideal for minimal island or suspended installations where a discreet yet efficient extraction solution is required. The new-generation brushless motor delivers strong extraction performance with low acoustic emissions and high energy efficiency.

Available finishes

• Stainless steel
• Black matt
• White

Connectivity & control

• Elica Connect compatible for remote management via app
• Voice assistant compatibility
• Automatic hob-hood communication to adjust extraction according to active cooking zones
• Remote monitoring of filter status and maintenance notifications

Filtration & maintenance

• Grease filters to improve filtration efficiency
• Long Life Filters for enhanced odour reduction with up to three years lifespan and reduced maintenance

Lighting

• Wide Light Dimming system for uniform worktop illumination with adjustable intensity
• LED 7 W — 3000 K — approx. 450 LUX

Plus / Key features

• Comfort Silence — brushless motor for powerful extraction and exceptional acoustic comfort
• Connex — app and voice assistant integration; hob connection for automatic extraction adjustment
• Wide Light Dimming — full LED lighting with adjustable brightness
• Delay Switch Off (timer) — automatic shut-off after a set time
• Modular design — multiple configurations (wall-mounted, suspended, island) and dedicated accessories including wooden shelf

Technical specifications (table)
Finishing: Stainless Steel
Dimensions (cm): 32x3
Energy Class: A+
Minimum distance from wall unit (induction/radiant hob): 50 cm
Minimum distance from wall unit (gas hob): 65 cm
Duct Transition: 150 mm
Lighting: LED 7 W - 3000 K - 450 LUX
Absorption: 177 W
Airflow Min-Max: 195 m³/h - 710 m³/h
Noise level Min-Max: 41 dB(A) - 59 dB(A)
Controls: 3S+B Electronic push button

Technical characteristics

• Finishing: Stainless Steel (also available in Black matt and White)
• Dimensions: 32x3 cm
• Energy class: A+
• Duct transition: 150 mm
• Lighting: LED 7 W, 3000 K, approx. 450 LUX; Wide Light Dimming with adjustable intensity
• Motor: new-generation brushless technology for high performance and low noise
• Airflow range: 195 m³/h (min) – 710 m³/h (max)
• Noise level range: 41 dB(A) – 59 dB(A)
• Power absorption: 177 W
• Controls: 3S+B Electronic push button
• Connectivity: Elica Connect, voice assistants, automatic hob-hood communication for power adjustment
• Filtration: grease filters; Long Life Filters for odour reduction (up to 3 years)
• Additional features: Delay Switch Off, Dim Light (adjustable), modular configuration options (wall-mounted, suspended, island)
• Product family: THEKUB SUSPENDED
• Product reference: PRF0214981
