Circulation exhaust fan 85904

ceilingcommercialindoor

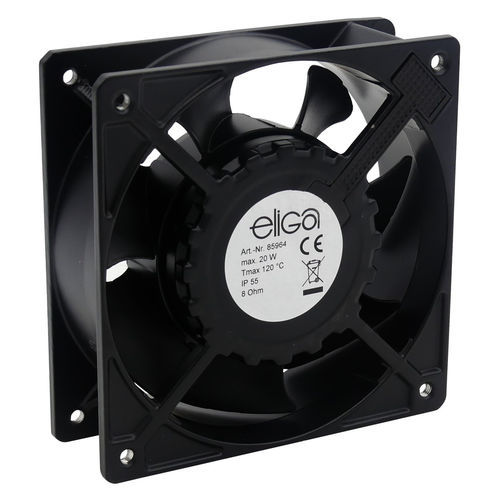

Screw-on ventilation fan IP55 water-protected for sauna suitable for commercial sauna up to 17 m³ room size - air performance approx. 178 m³/h, for bigger sauna rooms several ventilation fans can be used parallel operated, with ball-bearing, suitable surrounding temperature -40 °C up to +80 °C, 230 V/50 Hz, 23 W. Suitable finger protection grille is available on request. dim.: WxHxD approx. 120x120x38 mm weight approx. 480 g With 2 pins 2.8x0.5 mm art. no. 85904 suitable connection cable with plugs is available on request With approx. 30 cm connection cables art. no. 85905 Screw-on ventilation fan IP68 water-protected for steam bath art. no. 85908 suitable for commercial steam bath rooms up to 15 m³ room size - air performance approx. 156 m³/h, for bigger steam bath rooms several ventilation fans can be used parallel operated, with approx. 1 m connection cable, with ball-bearing, suitable surrounding temperature -10 °C up to +65 °C, 230 V/50 Hz, 18 W. Suitbale finger protection grilles made of stainless steel or plastic are available on request, dim.: WxHxD approx. 119x119x38 mm weight approx. 580 g Pipe inserted ventilation fan IPX4 water-protected, permissible ambient temperature: 0 °C up to +45 °C, max. temperature of air flow 60 °C, 220-240 V/50 Hz, length approx. 115 mm For pipe Ø 125 mm art. no. 85910 suitable for commercial sauna up to approx. 19 m³ room size - air performance approx. 195 m³/h, 16 W, weight approx. 500 g For pipe Ø 100 mm art. no. 85913 suitable for commercial sauna up to approx. 10 m³ room size - air performance approx. 102 m³/h, 14 W, weight approx. 490 g For pipe Ø 150 mm is available on request
