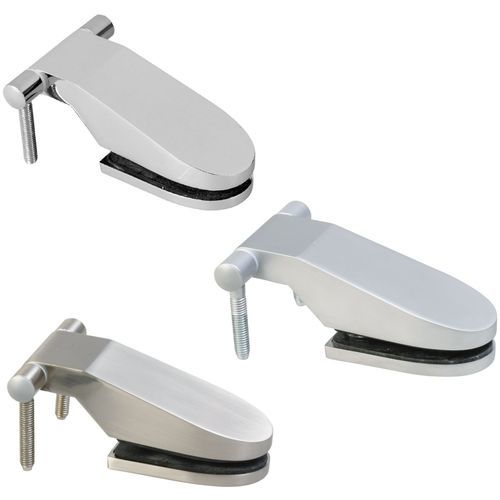

Glass door hinge TONGUE FORM

stainless steelfor spasfor wellness center

eliga door hinges for glass doors height and side adjustment of the glass door up to 4.5 mm depending on the fitting position of the adjustable eccentric is possible (see drawing) silent, maintenance-free plastic slide bearing aperture angle 180° door hinge made of corrosion-free zinc die-casting turning pin and screws made of stainless steel DIN left or right usable Design: Tongue form* for private and commercial facilities surface: art. no. 85147 high-polished chrome art. no. 85148 matt-chrome art. no. 851490 stainless steel look fastening in rabbet: 2 drill-in threaded pins M8x40 remarks: for glass pane inside in door frame glass bore holes: 2 pieces (dimension sheet on request) load-bearing capacity: 25 kg/piece dimensions WxH approx .: 132x79 mm weight approx.: 530 g Design: Tongue form* for private and commercial facilities surface: art. no. 85150 matt-chrome fastening in rabbet: screw-on band in the door rabbat remarks: for glass pane inside in door frame glass bore holes: 2 pieces (dimension sheet on request) load-bearing capacity: 25 kg/piece dimensions WxH approx .: 128x124 mm weight approx.: 710 g
