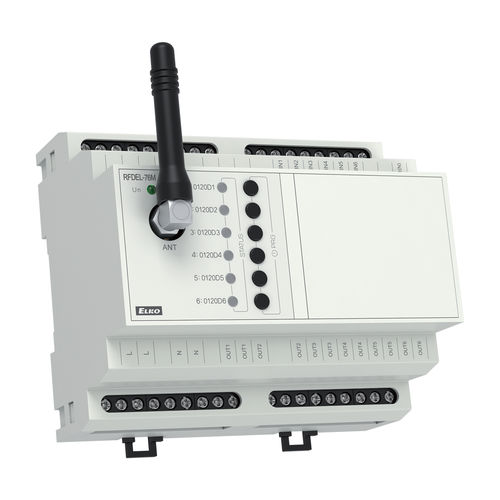

DIN rail dimmer RFDEL-76M

The RFDEL-76M is a universal six-channel dimmer that is used to control the brightness intensity of dimmable R - L - C - ESL - LED ESL sources. The maximum possible load is 150 VA for 230 V and 75 VA for 120 V for each channel. Individual dimmer channels can be connected in parallel to increase the maximum output load at the expense of the number of outputs. Each of the output channels is independently controllable and addressable. The min. brightness setting eliminates flickering of different types of light sources, the min. brightness and load type setting is done by PRG buttons. Electronic over-current, thermal and short circuit protection that shuts down the output. 6 galvanically isolated inputs for wired buttons that can be used to control outputs independently of RF. Communication with bidirectional RFIO2 protocol. Internal AN-I antenna included, if the element is placed in a metal cabinet, an external AN-E antenna can be used to improve the signal. Dimmable loads: R - L - C - ESL - LED Output: 12x MOSFET Output loads: 6x 150W (230V) / 6x 75W (120V) Protections: overheating and overload Housing: 6-MODULE Supply voltage (frequency): 230 V (50 Hz) or AC 120 V (60 Hz) Dimensions: 90 x 105 x 65 mm (3.5˝ x 4.1˝ x 2.6˝)
