Home automation system control unit RFDW-71/B

for lighting

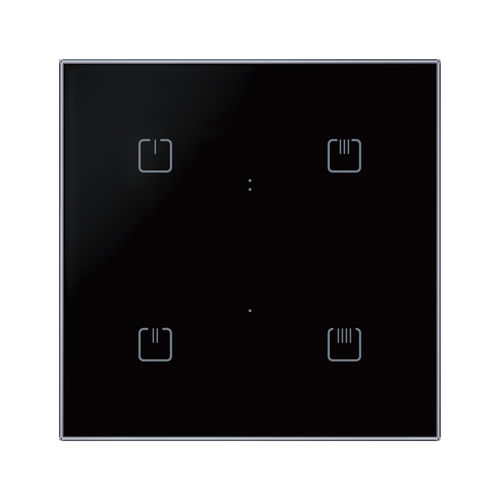

Glass controller with dimmer SHARP edges Wireless glass designed switch with integrated dimming component which serves to regulate light sources: - R – classic lamps - L – halogen lamps with wound transformer - C – halogen lamps with electronic transformer - ESL – dimmable energy-effi cient fl uorescent lamps - LED light sources (230 V). LED - light sources equipped with LED4 white illuminated switch buttons allow direct control of the integrated dimmer as well as other elements in the installation. The backlight intensity of the buttons is automatically adjusted depending on the ambient lighting. They can be combined with detectors, controllers or iNELS RF Control system elements. 7 light functions - continuous start-up or timer with time setting 2 s - 30 min. Description of functions on page 79. When switched off, the set level is stored in memory and returns to the last set value when switched on again. Setting the min. brightness eliminates flickering of LED and ESL lamps. The universal dimmer can be controlled by up to 25 channels. Function settings, load type, button assignments are made by a hidden programming button. Possibility to set the memory status in case of power failure. Range up to 160 m (in open area), in case of insufficient signal between the controller and the element, use signal repeater RFRP-20 or elements with RFIO2 protocol that support this function. Communication with RFIO2 bidirectional protocol Number of channels: 4 Power supply: AC 230 V or 120 V AC Design: glass sharp Colour: B - black Dimensions: 100 x 100 x 36 mm Protocol: RFIO2
