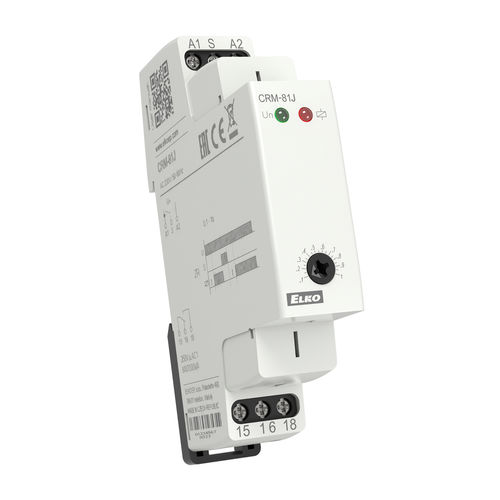

Mechanical time switch CRM-81J

DIN rail

3 functions and 6 time ranges, multivoltage or 230V supply, output 16A changeover/SPDT. Single-function and single-time relay with fi ne time setting by a potentiometer (within the frames of a particular time range). Suitable for applications where function and time requirements are known. Time switch, possible to be used for pump delay after switching heating off , switching of fans. Choice of 3 functions: 1) ZR - Delay ON 2) ZN -Delay OFF 3) BL - Repeat Cycle Functions can be controlled by supply voltage or time scale control input Choice of 6 time ranges: (0.1 s - 1 s / 1 s - 10 s / 6 s - 60 s / 1 min - 10 min / 6 min - 60 min / 1 h - 10 hrs) Universal voltage range AC/DC 12 - 240 V or AC 230 V. Output contact:: 1x changeover/ SPDT 16 A Red LED output indicator. 1-MODULE, DIN rail mounting. Voltage range: UNI - AC/DC 12 - 240 V (AC 50 - 60 Hz), 230 - AC 230 V / 50 - 60 Hz Maximum consumption: 4 W Output contact: 1x chang./ SPDT 16A (AgNi) Mounting: DIN rail EN 60715 LED indication: input - green, output - red Protection degree: IP40 from front panel / IP20 terminals Dimensions: 90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝) Weight: 60 g (2.1 oz.)
