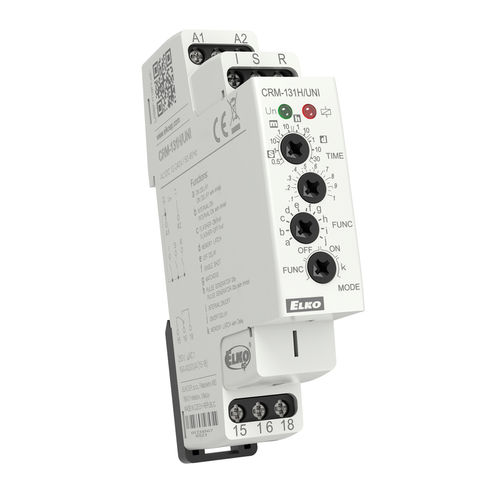

Multifunction 3 control inputs
Multifunction time relay for universal use in automation, control and regulation or in house installations.
Three control inputs - START, INHIBIT, RESET.
Mode selection - according to the set function, permanently closed, permanently open, function of MEMORY LATCH with delay.
Multifunction red LED flashes or shines depending on the operating status.
Output: 1x CO, 16 A
Housing: 1-MODULE
Supply voltage (frequency): AC/DC 12-240 V (AC 50/60 Hz)
Time range: 50 ms - 30 days (10 ranges)
Number of functions: 11
Dimensions: 90 x 17.6 x 64 mm (3.5˝ x 0.7˝ x 2.5˝)
