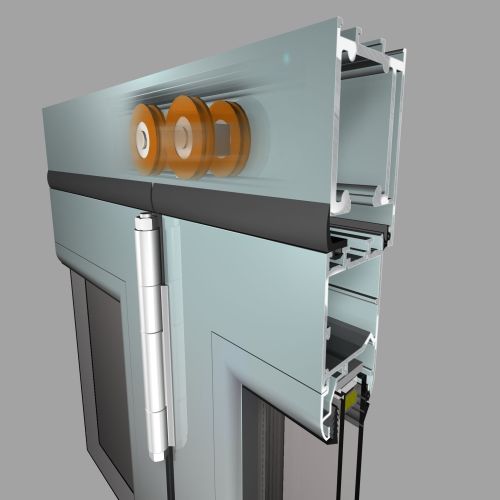

Aluminum door profile EL 8200 FLEXI

thermally-insulated

The system EL 8200 offers unlimited possibilities for covering very large doors and provides excellent tightness and lucidity thanks to the minimal presence of aluminum. This unique system for folding doors give the possibility to create multiple structures up to 3 m height and 0,8 m width per sash, without a horizontal partition for an excellent esthetic result. Main characteristics Can cover very big openings Minimal presence of aluminum for more lucidity Perfect tightness thanks to the use of specially designed EPDM gaskets and high density brushes with membrane. Possibility to create a wide range of folding doors with up to 3m height (!) without horizontal partition Available with a flat track for an easier folding It includes a special flat safety handle which can be used to pull or push the sashes Easy process for placing the handle and the locking mechanism. It provides the possibility to manufacture opening sashes in the center of the folding door which function independently, without needing to fold the door It provides the possibility to create a par number of sashes that can move to one direction (i.e. 4-0-0) Possibility to manufacture a par number of sashes moving in one direction with an odd number of independent sashes moving in the opposite direction (eg 7-4-3) It provides the possibility to manufacture an odd number of sashes with an independent sash at the end It accepts a lock of 30mm depth without needing additional processing for long lasting constructions
