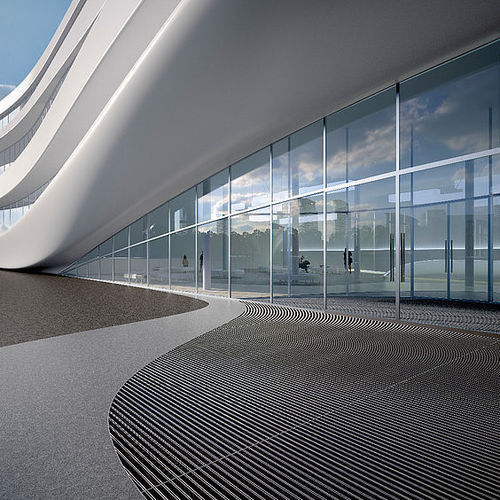

The toughest of all the robust weather-proof solutions available. For picking up significant amounts of coarse soiling in heavily frequented buildings.
Technical data
Approx. height (mm)42
Roll-over and drive-over capability:Wheelchairs
Prams
hand trolleys
Light shopping trolleys
Cars
pallet trucks
HGVs (up to 7.5 t.)
Standard profile clearance approx. (mm)5 mm, rubber spacers
ConnectionPlastic-coated steel cable
Max. width/profile length for individual section (mm):2800
Depth/walking depth for individual section (mm):1000
Weight (kg/m²)34,1
Mat divisions as per factory standards or customer specificationsAs of a profile length of 2800 mm or a maximum mat weight of 45 kg
Support chassisThick-walled, rigid aluminium with impact sound insulation underlay
Tread surfaceRecessed, robust, weather-proof profiled rubber inserts.
FlammabilityComplete mat system available with fire classification Cfl-s1 in accordance with EN 13501 (tested by the Textiles & Flooring Institute GmbH).
Automatic door systemsProfile clearance of 3 mm available as an option for revolving door drives, in accordance with EN 16005
Profile width (mm)
Service
Measured using laser measuring device on site.
Fitting and installation service
Construction site advice
The product can be disposed of or recycled in an environmentally friendly way.
