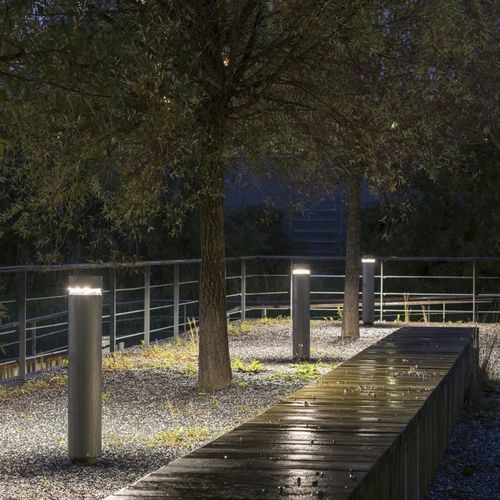

Urban bollard light CASTOR

homecontemporarycast aluminum

Castor is an ERCO bollard luminaire range designed to visually connect paths and squares outdoors and to provide uniform, glare-controlled illumination for both pathways and open areas. The range offers two selectable light distributions (180° for path lighting, 360° radial for open areas) and three construction sizes to suit varied lighting tasks.

Special features

• Two light distributions in one optical system: 180° oriented distribution for paths and 360° radial distribution for open areas.
• Various construction sizes covering a wide variety of lumen categories to match different lighting tasks.
• Large luminaire spacing: floor washlights with wide radial distribution allow luminaire spacings up to 10 m; 180° wide distribution enables uniform path lighting with spacing up to 8 m.
• ERCO Dark Sky technology: prevents emission of light above the horizontal for reduced skyglow.
• Concealed optic and anti-glare design to ensure good visual conditions for pedestrians and drivers.

Product description
The Castor bollard luminaire uses an innovative optical system with a ring-shaped lens to achieve uniform illumination either aligned 180° to one side (path) or 360° all around (open areas). The lighting technology is optimised for floor-washlighting and glare control, permitting large spacing without compromising visual comfort. Anti-glare cone and concealed optics support good visual conditions while the ERCO light guiding ring shapes the emission precisely.

Variants / Individualisation

• High-power LEDs: 3000K with CRI 97; and 2700K, 3500K, 4000K with CRI 92.
• Housing: choice from 10,000 further colours via ERCO individual service (additional variants on request).

Structure / Components

• ERCO light guiding ring: made of optical polymer.
• ERCO LED-module: high-power LEDs available in warm white (3000K) or neutral white (4000K) and other specified CCT/CRI options.
• Anti-glare cone: corrosion-resistant cast aluminium with No-Rinse surface treatment; double powder-coated and black lacquered; glare-free above the light aperture.
• Upper cover: corrosion-resistant cast aluminium with No-Rinse surface treatment, Graphit m finish, double powder-coated.
• Bollard body: corrosion-resistant aluminium profile, Graphit m, double powder-coated, optimised surface to reduce dirt accumulation.
• Control gear: switchable or DALI dimmable.
• Base plate: for mounting on accessories; mounting accessories ordered separately.

Technical data / specifications

• Light distributions: Radial beam (360°) and wide/asymmetrical 180° for path lighting.
• Light source electrical power: approx. 8.1 W – 24.3 W (depending on configuration).
• Luminous flux (typical range): approx. 956 lm – 3144 lm (depending on LED and power option).
• Possible luminaire spacing: up to 10 m for 360° floor washlights (h ≥ 800 mm); up to 8 m for 180° wide distribution (h ≥ 800 mm).
• Optics: ring-shaped lens for aligned or radial emission; concealed optic for reduced glare.
• Materials & finish: cast aluminium components with No-Rinse surface treatment; double powder-coated; Graphit m standard finish; corrosion-resistant aluminium profile for bollard body.
• Control: switchable or DALI dimmable electronic control gear.
• Dark Sky compliance: designed to prevent light emission above the horizontal.
• Mounting: base plate and mounting accessories (to be ordered separately).
• Variants: high-CRI options (3000K CRI 97) and multiple CCT/CRI combinations; extensive colour customisation via ERCO individual.
