Recessed downlight QUINTESSENCE

LEDroundIP65

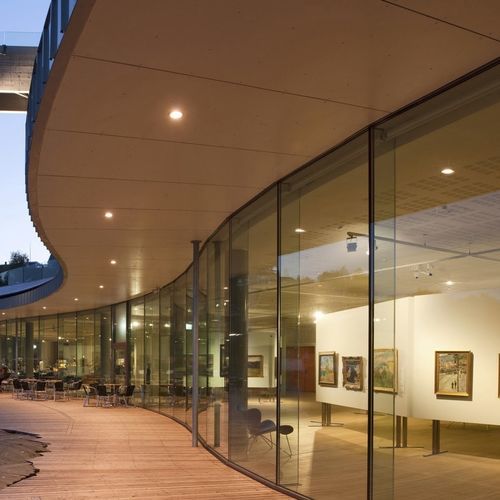

Quintessence is a family of recessed outdoor luminaires from ERCO designed for canopied outdoor areas, delivering very high visual comfort and consistent, high-quality light. The range comprises downlights, lens wallwashers and directional spotlights for ambient, wallwashing and accent lighting tasks.

Key features

• Very high visual comfort thanks to ERCO Darklight reflector technology combining low glare with efficient light output.
• IP65 protection and corrosion-resistant cast-aluminium cover ring for integration in canopied outdoor spaces.
• System-oriented portfolio covering ambient illumination, uniform wallwashing and precise accenting.

Variants / customization

• High-power LED options: 3000K CRI 97; 2700K, 3500K, 4000K with CRI 92. ERCO individual variants available on request.
• Reflector finishes on request: matt gold, matt silver or matt champagne; diffuser and lens options including extra wide flood, wallwash systems and Spherolit lenses (narrow spot / spot / flood).

Product features in detail

• ERCO Darklight reflector (downlight): ensures very high visual comfort; downlight cut-off angle 40°; reflector material: polymer with aluminium vapour-deposited mirror finish.
• Wallwasher reflector: 80° cut-off for uniform, low-glare wallwashing.
• ERCO LED module: high-power LEDs; directional luminaires equipped with a collimating lens in optical polymer, tilt 0°–20° and 360° rotation for precise accenting.
• Diffuser and lens options: optical polymer diffuser lens, extra wide flood or lens wallwash system; Spherolit lenses for directional units (narrow spot / spot / flood).
• Cover ring and housing: corrosion-resistant cast-aluminium cover ring with No‑Rinse surface treatment, double powder-coated silver finish; safety glass; cast-aluminium housing, powder-coated silver.
• Installation: mounting with 2- or 3-point contact and screw fastening for ceiling thicknesses 1–30 mm; lateral installation unit in black polymer.
• Control gear: switchable or DALI dimmable control gear options.

Technical specifications

• IP rating: IP65 (suitable for canopied outdoor spaces).
• Beam angles and distributions: Downlights — extremely wide distribution up to 90° with 40° cut-off; Wallwashers — 80° cut-off; Directional luminaires — narrow spot / spot / flood with precise aiming (tilt 0°–20°, rotation 360°).
• Power and luminous flux (family overview): Downlights 12.1 W – 24.3 W (≈ 1435 lm – 3144 lm); Lens wallwashers 8.1 W – 24.3 W (≈ 956 lm – 3144 lm); Directional luminaires 2 W – 18.2 W (≈ 239 lm – 2358 lm).
• Mounting compatibility: ceiling thickness 1–30 mm; 2- or 3-point mounting with screw fixation.
• Materials: cast aluminium housing and cover ring; optical components in polymer; safety glass.
• Control options and services: switchable or DALI dimmable; additional variants available via ERCO individual service.
