Surface-mounted light fixture IKU

LEDcylindricalIP65

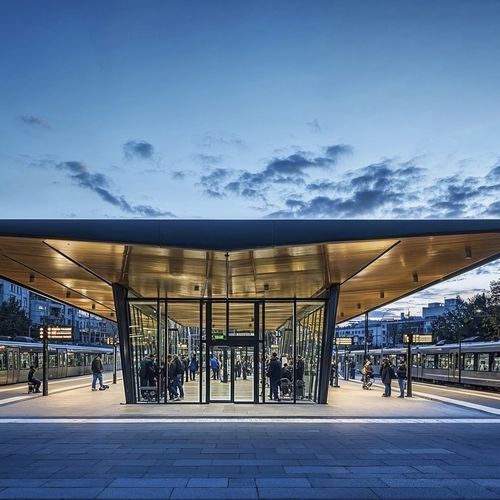

Iku is a family of surface-mounted luminaires designed for architectural outdoor lighting in weather-exposed environments such as bus terminals, cantilever roofs and passageways. The cylindrical, neutral form and multiple light distributions provide flexibility for renovation projects and new installations.

Special features

• Tunable white (dynamic colour temperature control)
• >120 lm/W (high luminous efficacy, depending on configuration)
• Safety class II
• Protection rating IP65 — dustproof and protected against water jets
• Corrosion-resistant aluminium housing with No‑Rinse surface treatment
• Surface-mounted installation with option for through-wiring
• Precise aiming: rotation ±10° on the mounting plate
• Designed service life: target ≈75,000 operating hours (eco-design objective ~20 years)

Sizes

• Size 3 — Diameter: 128 mm; Luminaire flux: 529–1,334 lm; Indicative connected load: 6.9 W – 11.3 W
• Size 5 — Diameter: 192 mm; Luminaire flux: 1,198–4,625 lm; Indicative connected load: 18.9 W – 34.3 W

Light distributions

• Wallwash (asymmetrical lens wallwashers) — uniform vertical illumination of façades
• Oval flood — axially symmetrical, linear lighting for corridors and covered routes
• Wide flood — rotationally symmetrical for general ambient lighting
• Extra wide flood — very wide beam for broad area coverage

Applications & lighting concepts

• Suitable for exterior architectural lighting, façades, covered passageways, bus and transport terminals
• Supports combined indoor-outdoor concepts and AAA lighting approaches (Architecture, Activity, Atmosphere)
• Selectable distributions enable wallwashing, linear corridor lighting and general ambient illumination

Downloads available on the product page

• Product images (ZIP)
• Product brochure (PDF)

Technical specifications

• Mounting: surface-mounted luminaire
• Protection rating: IP65
• Safety class: II
• Housing: corrosion-resistant aluminium with No‑Rinse surface treatment
• Designed service life: target ≈75,000 operating hours (development requirement: ECO design minimum service life 20 years for new luminaires)
• Through-wiring possible for simplified installation and future expansion
• Adjustment: rotation ±10° on the mounting plate to assist aiming
• Light distributions: Wallwash, Oval flood, Wide flood, Extra wide flood
• Connected load (examples): Size 3: 6.9 W – 11.3 W; Size 5: 18.9 W – 34.3 W (variant-dependent)
• Luminous flux ranges (examples): Size 3: 529–1,334 lm; Size 5: 1,198–4,625 lm (variant-dependent)
• Tunable white: available (dynamic colour adjustment)
• Efficiency: up to >120 lm/W depending on configuration
