In-ground light fixture TESIS

LEDroundIP68

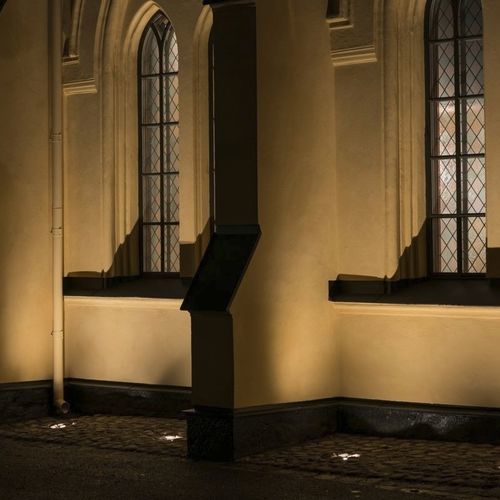

Tesis New is a family of in-ground luminaires designed for outdoor façade, landmark and bridge illumination. The range provides flexible optical configurations, efficient LED output and corrosion-resistant polymer housings suitable for direct installation in the ground.

Key features

• Tool-free, on-site interchangeable lenses and filters
• Casambi Bluetooth wireless control option
• Safety class II
• Ingress protection up to IP68 (suitable for permanent immersion)
• Corrosion-free polymer housing designed for direct ground installation
• Anti-slip protective glass and vehicle-load compatible versions with dedicated recessed housings

Sizes and typical luminous flux

• Size 2 — Diameter: 56 mm; Luminous flux: 137–268 lm
• Size 3 — Diameter: 180 mm; Luminous flux: 481–581 lm
• Size 4 — Diameter: 209 mm; Luminous flux: 299–1119 lm
• Size 5 — Diameter: 286 mm; Luminous flux: 299–1638 lm
• Size 7 — Diameter: 324 mm; Luminous flux: 899–2955 lm

Light distributions

• Uplights — very wide, rotationally symmetrical beams for accent and orientation
• Directional luminaires — beams from very narrow to wide, rotationally or axially symmetrical for precise accentuation
• Zoom directional luminaires — manually adjustable round or oval beams; rotationally symmetric zoom approx. 15°–65°; oval zoom approx. 20°×70° – 75°×60°
• Recessed wallwashers — asymmetrical distributions for highly uniform wallwashing
• Semi-recessed wallwashers — enable very close-to-wall installation and improved longitudinal uniformity

Downloads

• Product brochure (PDF)

Technical specifications

• Construction sizes available: 2 (56 mm), 3 (180 mm), 4 (209 mm), 5 (286 mm), 7 (324 mm)
• Connected load by size: Size 2 ≈ 3 W; Size 3: 7.9 W – 9.8 W; Size 4: 6.8 W – 19 W; Size 5: 6.8 W – 29 W; Size 7: 15.7 W – 38 W
• Number of selectable light distributions by size: Size 2: 5; Size 3: 2; Size 4: 8; Size 5: 8; Size 7: 8
• Flush mounting: supported for sizes 3, 4, 5 and 7; size 2 not indicated for flush mounting
• Protection rating: IP68
• Safety class: II
• Housing: corrosion-resistant polymer suitable for direct ground installation
• Interchangeable lenses and filters: tool-free replacement on-site; honeycomb louvres and spectrum-influencing filters available
• Zoom optics: continuously adjustable rotationally symmetric zoom 15°–65°; oval zoom variant for adjustable oval beams (approx. 20°×70° – 75°×60°)
• Designed for real-world demands: weatherproof construction; versions compatible with vehicle loads when used with special recessed housings
