Dimmable track-light system MINIRAIL

low-voltage48 Vmuseum

Product description
Minirail by ERCO is a miniaturised 48V low-voltage track system designed for flexible, space-saving lighting installations. The system uses two isolated conductors and a narrow profile of 22 mm, enabling high-quality lighting in tight or aesthetic-sensitive environments. Minirail 48V supports compact luminaires and can be used for display cases, surface ceiling mounting, recessed integration and suspended installations with appropriate accessories.

Special features

• 48V low-voltage technology for safety and energy-efficient operation.
• Small profile: only 22 mm wide for discreet integration.
• Control compatibility: switching, dimming, DALI, Zigbee and Casambi Bluetooth.
• Extensive accessories: connectors, couplers, power feeds, mounting clips, suspension wires/tubes and rapid connectors.
• OEM adapters available for integration of luminaires from other manufacturers.

Mounting and installation

• Track can be cut on site without damaging conductor paths.
• Guide slot for drill holes to speed up mounting on ceilings and walls.
• Available mounting options: surface-mounted, recessed (with plaster trim profiles), pendant (cable or tube suspension) and singlet feed for individual luminaires.
• Profiles available up to 3 m in length.

Materials and finishes

• Aluminium profile, powder-coated (including the inside) or anodised.
• Standard colours: white (RAL9002), black, silver; extended custom colour options available.

Recommended applications

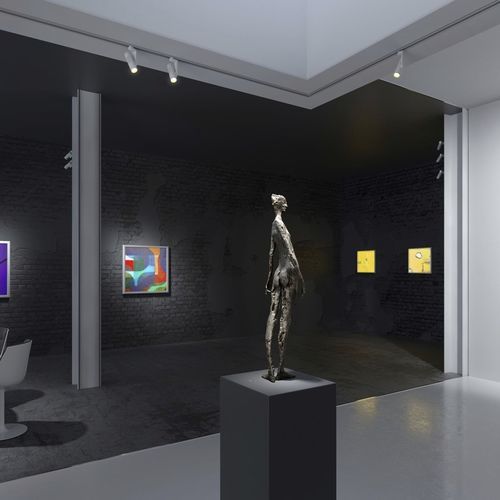

• Museums and galleries.
• Retail and shop windows.
• Display cases and compact architectural lighting projects.

Downloads

• Planning aid (detailed planning and installation information) – PDF available.
• Product brochure (compact overview) – PDF available.

Key product features / Technical specifications

• Operating voltage: 48V DC (low-voltage).
• Track profile width: 22 mm.
• Conductors: 2 isolated copper conductors, 4.15 mm².
• Circuit rating: one 10A circuit.
• Material: aluminium profile.
• Lengths: available up to 3 m.
• Finishes: powder-coated (incl. inside) or anodised; standard and custom colours.
• Control options: switching, dimming, DALI, Zigbee, Casambi Bluetooth.
• Mounting: surface, recessed, pendant, singlet feed.
• Compatibility: OEM adapters for third‑party luminaires.
