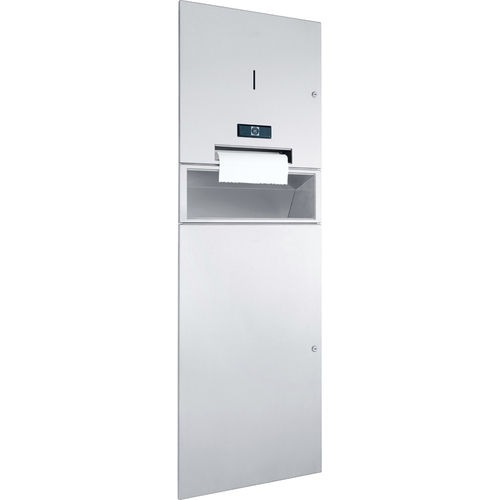

Combination consisting of a sensor paper roll dispenser (mains-operated) and a waste bin in robust, germ-reducing and easy-care stainless steel (AISI 304).
All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
Further available surfaces: Highly polished, plastic powder - coating.
Paper roll dispenser with touch-free operated, capacitive sensor technology, sensor distance approx. 3.5 cm. Paper length and idle time adjustable.
Mains-operated 230 V / 50 Hz; power rating 7 Watt; mains cable on site. TÜV/GS-tested and certified.
Designed for one paper roll with dimensions:
Width 215 mm, outer diameter max. 180 mm, inner diameter 50 mm.
Inspection slot to indicate fill level, residual roll function allows a reserve roll to be inserted before residual roll is completely used up.
Waste bin equipped with removable mesh basket.
Capacity approx. 48 l.
Accessible through lockable doors.
Keyed alike cylinder locks in corrosion-resistant zinc die-casting.
Wear parts and front panels can be replaced as modules.
Installation dimensions: 450 x 1350 x 210 mm (when fully fitted).
Mounting: With six screws in wall opening through fixing holes in the side walls.
Delivery includes fixing material and first fill with one paper roll.
Dimensions [mm]: 448 x 1348 x 220
Weight [kg]: 26,1
