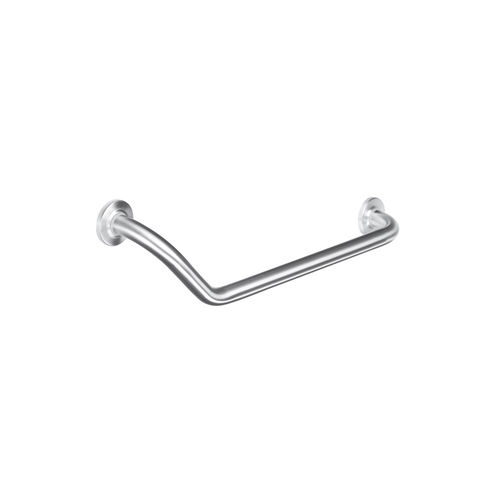

Angled grab rail 135° in robust, germ-reducing and easy-care stainless steel (AISI 304), satin finished.
Outer diameter of tubes 32 mm for ergonomic hold, clearance from wall 106 mm, bend radii 75 mm.
Wall mountings with 8-point mounting plate – can be freely rotated, 4 mm thick with 2K-wall sealing-disc.
Supports weight up to 125 kg.
Concealed fixings 75 mm in diameter, anti-theft, with silicone sealing ring at tube joint.
TÜV-certified in accordance with DIN EN 12182,
CE-marked in accordance with 93/42 EEC.
Mounting: With six screws.
Delivery includes fixing material.
Length / Weight / Order number
700 mm left-handed / 2,2 kg /
700 mm right-handed / 2,2 kg /
