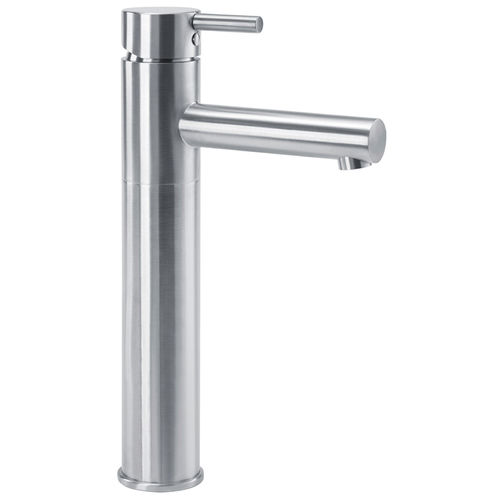

washbasin mixer tap / stainless steel / for sanitary facilities / 1-hole
WA110

{{requestButtons}}

Characteristics

  • Product applications:

    for washbasin

  • Material:

    stainless steel

  • Location:

    for sanitary facilities

  • Number of holes:

    1-hole

  • Market:

    commercial

Description

Single-lever basin tap without waste fitting in robust, germ-reducing and easy-care stainless steel (AISI 303).
Version: normal pressure. Operating pressure 2–6 bar.
Solid stainless steel body; visible surfaces satin finished.
Further available surfaces: Highly polished.
High quality ceramic mixer cartridge with adjustable temperature limit setting (scald protection).
Neoperl® air bubble spray M21 x 1 mm.
Design height: 283 mm
Outlet height: 199 mm
Projection: 98 mm
Length of lever: 40 mm
Wear parts can be replaced as modules.
Installation dimensions: Ø 33-40 mm
Surface thickness max. 40 mm
Mounting: With one counternut.
Delivery includes fixing material and two flexible connecting hoses clad in stainless steel.

Dimensions [mm]: 52 x 283 x 155
Weight [kg]: 1,7
