public trash can / built-in / stainless steel / polyethylene
GRUSS by Gemma Bernal

{{requestButtons}}

Characteristics

  • Type:

    public

  • Installation:

    built-in

  • Material...:

    stainless steel, polyethylene

  • Market:

    for public spaces

  • Options and accessories:

    contemporary

Description

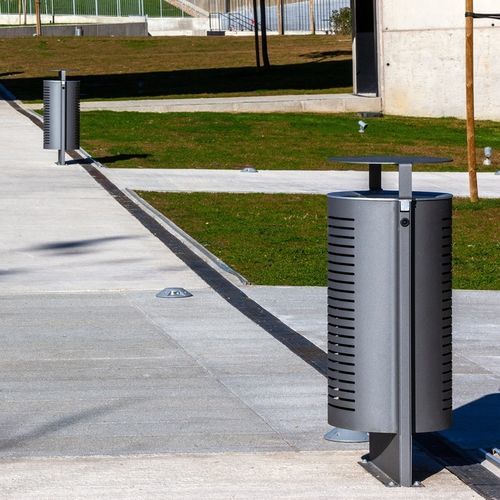

Gruss is an eminently urban litter bin formalised by a cylinder intersected by a vertical plane which, in turn, serves as a support recessed in the paving. The ring with the lock blocks a removable interior polyethylene container. Optionally, the ring may include an ash-tray perimeter or a cover as an additional accessory.

This model was initially installed in many parts of the city of Zaragoza and its still included in the city’s site furnishings catalogue.

Mouth and ashtray made from EN AC-51100 (L-2341) cast aluminium, with a sandblasted, shiny anodised finish. Body made from AISI 316L stainless steel with a thickness of 2 mm and a polished matte finish. Alternatively galvanised steel with a thickness of 2 mm, bi-chromate and a polyester paint or powder coated “Corten effect” finish. With an internal, non-flammable, black polyethylene container. Triangular shaped lock and A2 stainless steel screws.

The model is designed for installing recessed with two supports at a depth of 12 cm below the paving height, or anchored to the paving with an exposed rectangular plate and four Fisher SXR 10X80 FUS expansion plugs.

Materials: Zinc-plated steel oven-coated in textured Silver Zinc-plated steel oven-coated in Forge Black Zinc-plated steel oven-coated in Cor-ten effect
