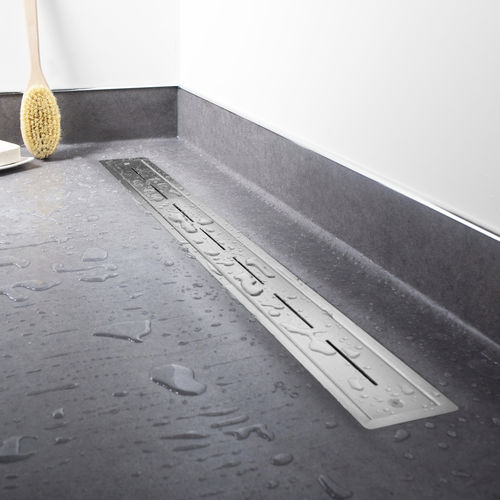

Easy Drain Vinyl is specially designed for use in combination with vinyl flooring. The vinyl can easily be clamped between the drain’s grate and build-in set to ensure a complete watertight installation. This way, the frame seamlessly fits into the vinyl floor. The Vinyl linear shower drain is supplied as complete set including: lockable grate, trap body, drainage siphon and height adjustable legs.
Vinyl
Easy Drain Vinyl is specially designed for use in combination with vinyl flooring. The vinyl can easily be clamped between the drain’s grate and build-in set to ensure a complete watertight installation. This way, the frame seamlessly fits into the vinyl floor. The Vinyl linear shower drain is supplied as complete set including: lockable grate, trap body, drainage siphon and height adjustable legs.
AVAILABLE LENGTHS
700 - 1200 mm
DRAINAGE CAPACITY
according to EN 1253
SIPHON
Easy to clean
SUITABLE FOR
Vinyl flooring
SUPPLIED AS
Complete set
SHOWER DRAIN MODEL
Rectangular shower drain
SERIE
Vinyl
APPLICATION
New construction, Renovation
CERTIFICATION
DIN 18534, EN1253, ETAG-022
SUBSTRATE
Concrete / Sand Cement, Lewis sheets, Wooden floors
FLOOR FINISH
Vinyl
MAX. DRAINAGE CAPACITY ENTRANCE (L/MIN)
28, 33
INSTALLATION DEPTH (INCL. GRATE) (MM)
80, 99
INSTALLATION DEPTH (MM)
80, 99
CONNECTION (⌀)
40, 50 (Global) / 56 (UK)
HEIGHT ADJUSTABLE FEET INCLUDED
Yes
DIMENSIONS (MM)
700 mm, 800 mm, 900 mm, 1000 mm, 1200 mm
OUTLET TYPE
Rotatable outlet
WATER SEAL (MM)
28, 50
BUILT-IN SET
M2-35 | Rotatable outlet | Water seal 28 mm, M2-50 | Rotatable outlet | Water seal 50 mm
INSTALLATION OPTION
Floor
OUTLET
Horizontal (Vertical outlet optional)
