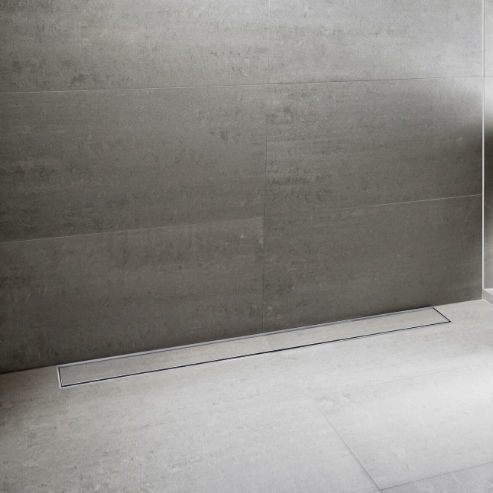

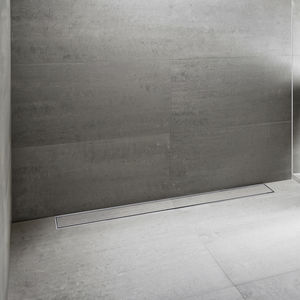

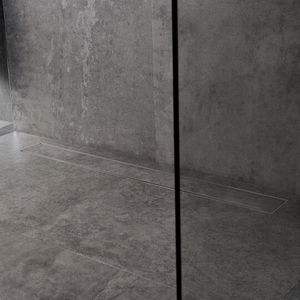

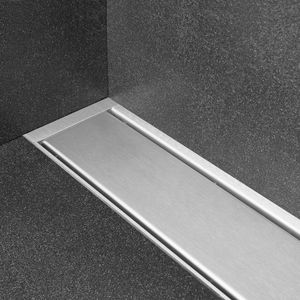

Easy Drain Multi TAF Wall, the worlds most multifunctional linear shower drain, comes standard with height adjustable frame (TAF) and pre-assembled sealing membrane (WPS). This way, the grate adapts perfectly to you bathroom floor and ensures complete drainage of shower water. Multi TAF drain is delivered complete and comes with a reversible grate.
AVAILABLE LENGTHS
500 - 2000 mm
WATER PROTECTION SYSTEM
10-year warranty
SIPHON
Easy to clean
DRAINAGE CAPACITY
according to EN 1253
SUPPLIED AS
Complete set
Shower Drain model
Rectangular shower drain
Application
New construction, Renovation
Certification
DIN 18534, EN1253, ETAG-022
Substrate
Concrete / Sand Cement, Lewis sheets, Wooden floors
Floor finish
Glass Mosaic, Thin tiles, Tiles / Mosaic
Max. drainage capacity entrance (l/min)
49
Installation depth (incl. grate) (mm)
79
Installation depth (mm)
85
Connection (⌀)
50 (Global) / 56 (UK)
Height adjustable feet included
Yes
Outlet type
Rotatable outlet
Water seal (mm)
30 / 35 / 50
Built-in set
Multi TAF Wall | Rotatable outlet | Water seal 30 / 35 / 50 mm
Outlet
Horizontal (Vertical outlet optional)
Location in shower
One-sided, Three-fold
MaxDrainageCapShowerDrain
49
Pre-assembled sealing membrane (WPS)
Yes
Siphon characteristics
Cleanable, Height adjustable, Pivotable & adjustable
Grate
Brushed stainless steel / Tile
Grate pattern
Zero / Closed
TAF frame type
TAF (Tile Adjustable Frame)
Frame material
Stainless steel (304)
Extension set available
Yes
