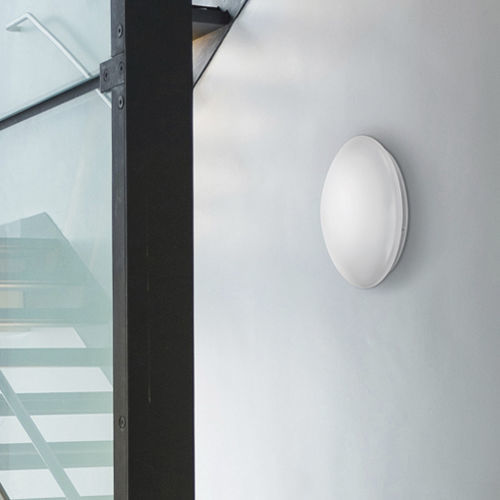

The LED lights in the ELLEN series feature a beautiful, timeless design, making them ideal for ceiling or wall mounting in hallways, staircases and function rooms. The optional concealed motion and light sensor technology and high level of luminous efficacy ensure energy-efficient operation on demand.
SHORTFACTS
Installation typeSurface mounting
Installation positionCeiling / Wall
Protection typeIP20
DimensionsHeight/Depth 95 mm, Ø 300 mm
Diffusoropal
Unified Glare Rating≤ 22
Luminous efficacy95 lm/W
Luminous Flux (light)1,150 lm
Rated output12 W
Colour temperature3000 K
Detection angle360°
Detection range diagonallyØ 20 m
field of detection315 m²
Warranty3-year
TECHNICAL DATA
GENERAL
Special product featuresHF sensor
Special product featuresLight-dependent motion detection , Zero-cross switching
ConformityCE , RoHS , WEEE
MOUNTING
Installation typeSurface mounting
Installation positionCeiling / Wall
Connection2,5 mm² / 1,5 mm²
HOUSING
DimensionsHeight/Depth 95 mm, Ø 300 mm
Weight880 g
System dimensions300
MaterialSteel
Surface finishfrosted
Protection typeIP20
Permissible ambient temperature0 °C...+50 °C
Impact resistanceIK07
Colourwhite
Glow wire test in accordance with IEC 60695-2-10650 °C
ELECTRICAL VERSION
Protection classI
Nominal voltage220 - 240 V / 50 - 60 Hz
Stand-by consumption< 0.5 W
LIGHT
Diffusoropal
Light emissiondirect
Beam angle120 °
Unified Glare Rating≤ 22
Flicker factor 80
Colour toleranceSDCM 80
Rated life time L80B50 at 25 °C60,000 h
