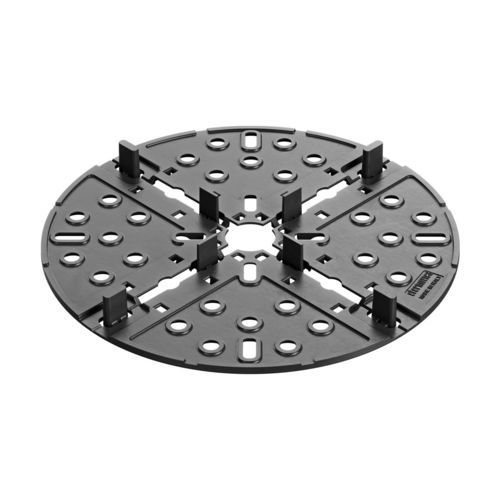

Outdoor terrace pedestal EH SLIM

for outdoor usefixed height

Product description
EH Slim is a fixed pedestal with an ultra-thin 4 mm profile specifically designed for installation on gravel or natural subbases. Its versatile design includes built-in removable spacer tabs (2 mm on the inner side and 4 mm on the outer side) that can be removed as needed. The backing can be used whole, split in half, or divided into quarters to adapt to any site geometry, and can be combined with the leveling device for installation using a linear spacer.

Installation and fixation
When applied with adhesive, the adhesive penetrates through the through-holes and bonds firmly to the backing, ensuring superior anchorage and installation stability. The backing can also be used without adhesive if necessary. The product is supplied with a specifically selected adhesive for professional installation.

Advantages

• Ultra-thin 4 mm profile with integrated tabs for 2- or 4-mm joints
• Can be used whole, split in half, or quartered to accommodate perimeters and corners
• Advanced anchoring and installation stability on gravel

Technical table
Height
4 mm
Tabs' thickness
2/4 mm
Tabs' height
16 mm

Remarks
Standard tabs are 3 mm thick (H 11 mm). On request, 2 mm or 4 mm tabs are available. Codes refer to the type with 3 mm thick tabs (H 11 mm).

Technical specifications

• Product name: Plot EH Slim
• Model / denomination: EH Slim
• Brand: Eterno Ivica
• Application: designed for installation on gravel or natural subbases
• Profile (height): 4 mm
• Tabs' thickness: standard 3 mm (H 11 mm); available on request in 2 mm or 4 mm
• Tabs' height: 16 mm (table value) — codes refer to 3 mm thick tabs H 11 mm
• Design features: built-in removable spacer tabs; backing can be used whole, split in half, or quartered
• Installation options: adhesive application (adhesive penetrates through holes for strong anchorage) or use without adhesive
• Compatible with leveling device and installation using a linear spacer
• Available variant code: E000004004 (EH Series, Fixed Height)
