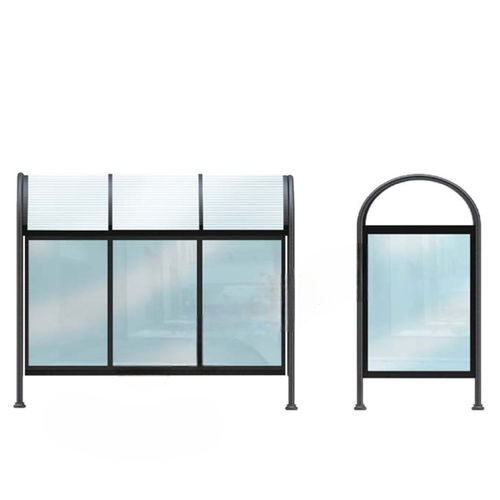

Public space shelter COD 480

– Four vertical doorposts made of hot-dip galvanized tubular iron: 60 mm in diameter 3 mm thick; four cast iron small bases. – Lateral panels made of hot-dip galvanized box-shaped iron, suitable for transparent polycarbonate panels fastening and fixed to the doorposts through stell bolts. – Barrel vault roof consisting in two arched tubular pipes 60 mm in diameter fixed, through electric soldering, to two horizontal bars where there are some hot-dip galvanized iron fasteners – A moulded panel made of transparent alveolar polycarbonate fixed to the roof through steel bolts. – The whole roof is held by the four vertical doorposts set up in the lower frame. Details: Assembled sie: cm 300 x 160 x H 320 Fastening: Extension of the vertical doorposts for about 50 cm underground
