aluminum door profile / acoustic / security
EFP 55 SLIDING W&D

Add to MyArchiExpo favorites
Compare this product Don’t compare this product

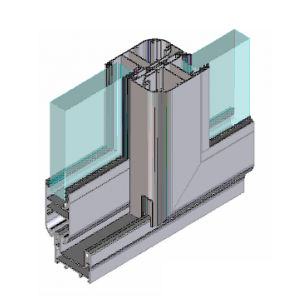

aluminum door profile / acoustic / security aluminum door profile / acoustic / security - EFP 55 SLIDING W&D
{{requestButtons}}

Characteristics

  • Material:

    aluminum

  • Technical characteristics:

    acoustic, security

Description

Sliding Window & Door systems enables the construction of attractive and & high quality Sliding windows & doors, with the benefits of slim sightlines.

This system consist of many of standard profiles and many custom made profiles are available up on request.

Specification summary continued:

Glazing—The system is glazed from the inside. Glass should conform the requirements of BS 6262 for thickness and type, in terms of wind resistance, safety and security.

Drainage—The system is fully drained & pressure equalised, achieved by meeting the requirements of “Ventilated and drained glazing system” as specified in BS 6262

Frame / Sliding Sash Glazing depth is 38mm, standard glazing thickness from 4 to 28mm
