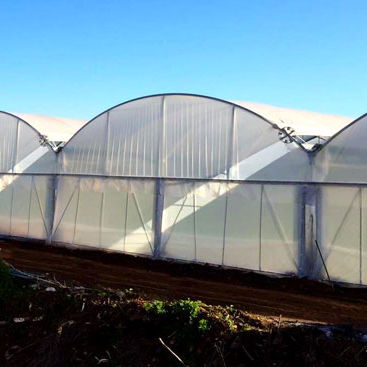

MULTIMED is a mid-range multi-span mainly developed for hot countries without excessive rain or snowfalls. Having said that, it remains an excellent product for those who need a multi-span structure at the best quality/price ratio.
Technical features:
SENDZMIR Z275 galvanized steel structure or hot dip galvanized
Foundation with or without concrete
Single or double plastic sheeting
Preset for the installation of central and side gutters
Different kinds of ridge vents
Manual or motor-driven roller side vents
Manual or motor-driven frontal roller vents
Different kinds of perimetral cladding (e.g. double inflated sheeting, polycarbonate, glass, PVC or sandwich panels)
Single or Double leaf sliding doors
DIMENSIONS
Width (mm)8000 – 8500 – 9000 – 9600
Useful height (m)From 2.50 up to 3.50
Arch spacing (m)2.00 – 2.50 – 3.00
Double spacing (m)4.00 – 5.00 – 6.00
ArchesØ 60 x 1.5/2.0mm
Tie rodsØ 32 x 1.5mm
PillarsØ 60 x 1.5/2.0mm
