Used to control central heating boiler and electrical heating appliances (16A relay). Programming on a weekly basis reduces energy expenses, whilst ensuring comfort at particular time periods.
Used to control the operation of CH boiler or electrical equipment. Regulates underfl oor heating according to the indications of the air and fl oor sensors. Temperature measurement via 2 sensors. Provides safe and planned control over the heat source. 6 levels of temperature programming with 0.5 hours precision. Extra features.
Device controlled
CH systems
Power supply
thermostat: 3 V (2 AA alkaline batteries)
receiver: 230 V 50 Hz
Receiver rated power consumption
1 W
Receiver output
voltage-free SPDT relay
Rated load
5 A 230 V 50 Hz
Range in built-up area
up to 30 m
Temperature measurement range
-10 °C...+45 °C
Temperature control range
+5 °C...+32 °C
Temperature control accuracy
0,5 °C
Temperature reading accuracy
0,1 °C
Temperature control hysteresis
0,5 °C / 1 °C
Status visualization
thermostat: LCD / receiver: LED diodes
Operating temperature range
+5 °C...+45 °C
Storage temperature range
0 °C...+65 °C
IP rating
IP 20, class II protection against electric shocks
Colour
white
Mount method
thermostat: wall mounted socket
receiver: 230 V 50 Hz mains socket
Weight
thermostat: 168 g (without batteries)
receiver: 288 g
Certificates/standards
compatibility with the R&TTE Directive
Warranty period
2 years
Dimensions (W/H/D) mm
thermostat: 125/90/34 / receiver: 64/112/68
Packing list

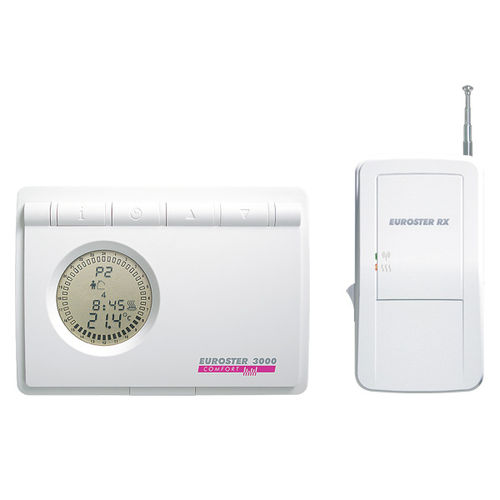

Euroster 3000TX thermostat with socket, RX receiver, wall plugs, instructions, batteries
